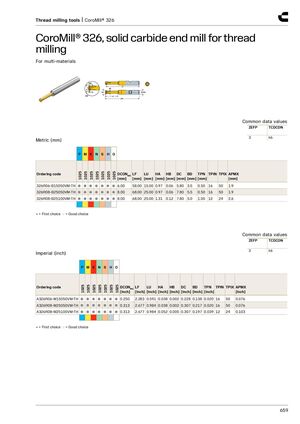

Thread milling tools | CoroMill® 326 CoroMill® 326, solid carbide end mill for thread milling​​ For multi-materials Common data values ZEFP TCDCON 3 h6 Metric (mm) P M K N S H O 1025 1025 1025 1025 1025 1025 1025 Ordering code DCONMS LF LU HA HB DC BD TPN TPIN TPIX APMX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 326R06-B15050VM-TH ● ● ● ● ● ● ● 6.00 58.00 15.00 0.97 0.06 5.80 3.5 0.50 16 50 1.9 326R08-B25050VM-TH ● ● ● ● ● ● ● 8.00 68.00 25.00 0.97 0.06 7.80 5.5 0.50 16 50 1.9 326R08-B25100VM-TH ● ● ● ● ● ● ● 8.00 68.00 25.00 1.31 0.12 7.80 5.0 1.00 12 24 2.6 ● = First choice ○ = Good choice Common data values ZEFP TCDCON 3 h6 Imperial (inch) P M K N S H O 1025 1025 1025 1025 1025 1025 1025 Ordering code DCONMS LF LU HA HB DC BD TPN TPIN TPIX APMX [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] A326R06-M15050VM-TH ● ● ● ● ● ● ● 0.250 2.283 0.591 0.038 0.002 0.228 0.138 0.020 16 50 0.076 A326R08-M25050VM-TH ● ● ● ● ● ● ● 0.313 2.677 0.984 0.038 0.002 0.307 0.217 0.020 16 50 0.076 A326R08-M25100VM-TH ● ● ● ● ● ● ● 0.313 2.677 0.984 0.052 0.005 0.307 0.197 0.039 12 24 0.103 ● = First choice ○ = Good choice 659
