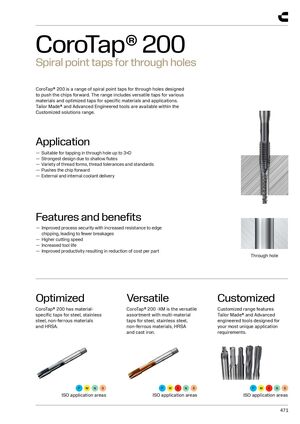

CoroTap® 200 Spiral point taps for through holes CoroTap® 200 is a range of spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made® and Advanced Engineered tools are available within the Customized solutions range. Application — Suitable for tapping in through hole up to 3×D — Strongest design due to shallow flutes — Variety of thread forms, thread tolerances and standards — Pushes the chip forward — External and internal coolant delivery Features and benefits — Improved process security with increased resistance to edge chipping, leading to fewer breakages — Higher cutting speed — Increased tool life — Improved productivity resulting in reduction of cost per part Through hole Optimized Versatile Customized CoroTap® 200 has material- CoroTap® 200 -XM is the versatile Customized range features specific taps for steel, stainless assortment with multi-material Tailor Made® and Advanced steel, non-ferrous materials taps for steel, stainless steel, engineered tools designed for and HRSA. non-ferrous materials, HRSA your most unique application and cast iron. requirements. ISO application areas ISO application areas ISO application areas 471
