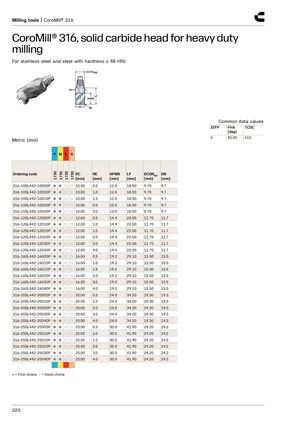

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for heavy duty milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 4 42.00 h10 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SL442-10005P ● ● ○ ○ 10.00 0.5 12.0 18.50 9.70 9.7 316-10SL442-10010P ● ● ○ ○ 10.00 1.0 12.0 18.50 9.70 9.7 316-10SL442-10015P ● ● ○ ○ 10.00 1.5 12.0 18.50 9.70 9.7 316-10SL442-10020P ● ● ○ ○ 10.00 2.0 12.0 18.50 9.70 9.7 316-10SL442-10030P ● ● ○ ○ 10.00 3.0 12.0 18.50 9.70 9.7 316-12SL442-12005P ● ● ○ ○ 12.00 0.5 14.4 22.00 11.70 11.7 316-12SL442-12010P ● ● ○ ○ 12.00 1.0 14.4 22.00 11.70 11.7 316-12SL442-12015P ● ● ○ ○ 12.00 1.5 14.4 22.00 11.70 11.7 316-12SL442-12020P ● ● ○ ○ 12.00 2.0 14.4 22.00 11.70 11.7 316-12SL442-12030P ● ● ○ ○ 12.00 3.0 14.4 22.00 11.70 11.7 316-12SL442-12040P ● ● ○ ○ 12.00 4.0 14.4 22.00 11.70 11.7 316-16SL442-16005P ● ● ○ ○ 16.00 0.5 19.2 29.10 15.50 15.5 316-16SL442-16010P ● ● ○ ○ 16.00 1.0 19.2 29.10 15.50 15.5 316-16SL442-16015P ● ● ○ ○ 16.00 1.5 19.2 29.10 15.50 15.5 316-16SL442-16020P ● ● ○ ○ 16.00 2.0 19.2 29.10 15.50 15.5 316-16SL442-16030P ● ● ○ ○ 16.00 3.0 19.2 29.10 15.50 15.5 316-16SL442-16040P ● ● ○ ○ 16.00 4.0 19.2 29.10 15.50 15.5 316-20SL442-20005P ● ● ○ ○ 20.00 0.5 24.0 34.20 19.30 19.3 316-20SL442-20010P ● ● ○ ○ 20.00 1.0 24.0 34.20 19.30 19.3 316-20SL442-20020P ● ● ○ ○ 20.00 2.0 24.0 34.20 19.30 19.3 316-20SL442-20030P ● ● ○ ○ 20.00 3.0 24.0 34.20 19.30 19.3 316-20SL442-20040P ● ● ○ ○ 20.00 4.0 24.0 34.20 19.30 19.3 316-25SL442-25005P ● ● ○ ○ 25.00 0.5 30.0 41.90 24.20 24.2 316-25SL442-25010P ● ● ○ ○ 25.00 1.0 30.0 41.90 24.20 24.2 316-25SL442-25015P ● ● ○ ○ 25.00 1.5 30.0 41.90 24.20 24.2 316-25SL442-25020P ● ● ○ ○ 25.00 2.0 30.0 41.90 24.20 24.2 316-25SL442-25030P ● ● ○ ○ 25.00 3.0 30.0 41.90 24.20 24.2 316-25SL442-25040P ● ● ○ ○ 25.00 4.0 30.0 41.90 24.20 24.2 ● = First choice ○ = Good choice 220
