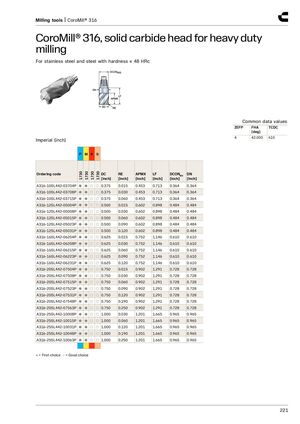

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for heavy duty milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 4 42.000 h10 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10SL442-03704P ● ● ○ ○ 0.375 0.015 0.453 0.713 0.364 0.364 A316-10SL442-03708P ● ● ○ ○ 0.375 0.030 0.453 0.713 0.364 0.364 A316-10SL442-03715P ● ● ○ ○ 0.375 0.060 0.453 0.713 0.364 0.364 A316-12SL442-05004P ● ● ○ ○ 0.500 0.015 0.602 0.898 0.484 0.484 A316-12SL442-05008P ● ● ○ ○ 0.500 0.030 0.602 0.898 0.484 0.484 A316-12SL442-05015P ● ● ○ ○ 0.500 0.060 0.602 0.898 0.484 0.484 A316-12SL442-05023P ● ● ○ ○ 0.500 0.090 0.602 0.898 0.484 0.484 A316-12SL442-05031P ● ● ○ ○ 0.500 0.120 0.602 0.898 0.484 0.484 A316-16SL442-06204P ● ● ○ ○ 0.625 0.015 0.752 1.146 0.610 0.610 A316-16SL442-06208P ● ● ○ ○ 0.625 0.030 0.752 1.146 0.610 0.610 A316-16SL442-06215P ● ● ○ ○ 0.625 0.060 0.752 1.146 0.610 0.610 A316-16SL442-06223P ● ● ○ ○ 0.625 0.090 0.752 1.146 0.610 0.610 A316-16SL442-06231P ● ● ○ ○ 0.625 0.120 0.752 1.146 0.610 0.610 A316-20SL442-07504P ● ● ○ ○ 0.750 0.015 0.902 1.291 0.728 0.728 A316-20SL442-07508P ● ● ○ ○ 0.750 0.030 0.902 1.291 0.728 0.728 A316-20SL442-07515P ● ● ○ ○ 0.750 0.060 0.902 1.291 0.728 0.728 A316-20SL442-07523P ● ● ○ ○ 0.750 0.090 0.902 1.291 0.728 0.728 A316-20SL442-07531P ● ● ○ ○ 0.750 0.120 0.902 1.291 0.728 0.728 A316-20SL442-07548P ● ● ○ ○ 0.750 0.190 0.902 1.291 0.728 0.728 A316-20SL442-07563P ● ● ○ ○ 0.750 0.250 0.902 1.291 0.728 0.728 A316-25SL442-10008P ● ● ○ ○ 1.000 0.030 1.201 1.665 0.965 0.965 A316-25SL442-10015P ● ● ○ ○ 1.000 0.060 1.201 1.665 0.965 0.965 A316-25SL442-10031P ● ● ○ ○ 1.000 0.120 1.201 1.665 0.965 0.965 A316-25SL442-10048P ● ● ○ ○ 1.000 0.190 1.201 1.665 0.965 0.965 A316-25SL442-10063P ● ● ○ ○ 1.000 0.250 1.201 1.665 0.965 0.965 ● = First choice ○ = Good choice 221
