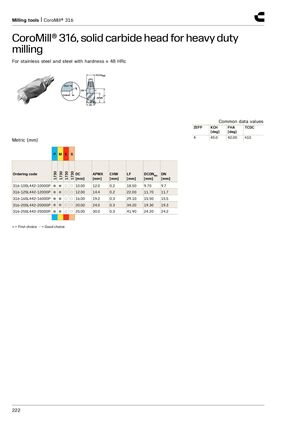

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for heavy duty milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP KCH FHA TCDC [deg] [deg] 4 45.0 42.00 h10 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC APMX CHW LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SL442-10000P ● ● ○ ○ 10.00 12.0 0.2 18.50 9.70 9.7 316-12SL442-12000P ● ● ○ ○ 12.00 14.4 0.2 22.00 11.70 11.7 316-16SL442-16000P ● ● ○ ○ 16.00 19.2 0.3 29.10 15.50 15.5 316-20SL442-20000P ● ● ○ ○ 20.00 24.0 0.3 34.20 19.30 19.3 316-25SL442-25000P ● ● ○ ○ 25.00 30.0 0.3 41.90 24.20 24.2 ● = First choice ○ = Good choice 222
