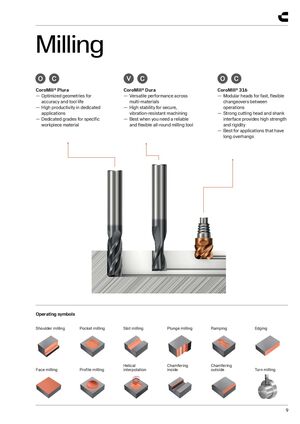

Milling tools Milling CoroMill® Plura CoroMill® Dura CoroMill® 316 — Optimized geometries for — Versatile performance across — Modular heads for fast, flexible accuracy and tool life multi-materials changeovers between — High productivity in dedicated — High stability for secure, operations applications vibration-resistant machining — Strong cutting head and shank — Dedicated grades for specific — Best when you need a reliable interface provides high strength workpiece material and flexible all-round milling tool and rigidity — Best for applications that have long overhangs Operating symbols Shoulder milling Pocket milling Slot milling Plunge milling Ramping Edging Helical Chamfering Chamfering Face milling Profile milling interpolation inside outside Turn milling 9
