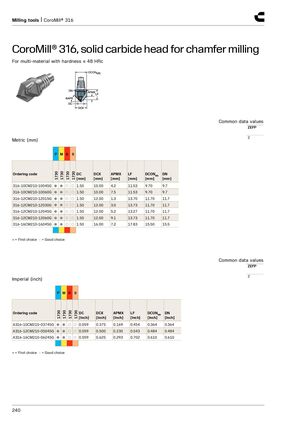

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for chamfer milling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP 2 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC DCX APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10CM210-10045G ● ● ○ ○ 1.50 10.00 4.2 11.53 9.70 9.7 316-10CM210-10060G ● ● ○ ○ 1.50 10.00 7.5 11.53 9.70 9.7 316-12CM210-12015G ● ● ○ ○ 1.50 12.00 1.3 13.70 11.70 11.7 316-12CM210-12030G ● ● ○ ○ 1.50 12.00 3.0 13.73 11.70 11.7 316-12CM210-12045G ● ● ○ ○ 1.50 12.00 5.2 13.27 11.70 11.7 316-12CM210-12060G ● ● ○ ○ 1.50 12.00 9.1 13.73 11.70 11.7 316-16CM210-16045G ● ● ○ ○ 1.50 16.00 7.2 17.83 15.50 15.5 ● = First choice ○ = Good choice Common data values ZEFP 2 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC DCX APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10CM210-03745G ● ● ○ ○ 0.059 0.375 0.169 0.454 0.364 0.364 A316-12CM210-05045G ● ● ○ ○ 0.059 0.500 0.230 0.543 0.484 0.484 A316-16CM210-06245G ● ● ○ ○ 0.059 0.625 0.293 0.702 0.610 0.610 ● = First choice ○ = Good choice 240
