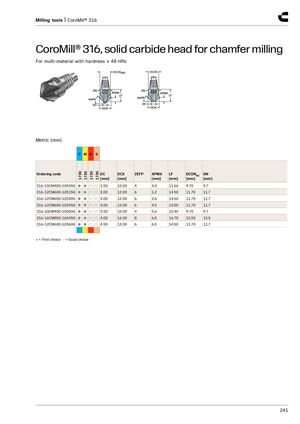

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for chamfer milling​​ For multi-material with hardness ≤ 48 HRc Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC DCX ZEFP APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10CM400-10045G ● ● ○ ○ 1.50 10.00 4 4.3 11.66 9.70 9.7 316-12CM600-12015G ● ● ○ ○ 3.00 12.00 6 1.2 14.50 11.70 11.7 316-12CM600-12030G ● ● ○ ○ 3.00 12.00 6 2.6 13.60 11.70 11.7 316-12CM600-12045G ● ● ○ ○ 3.00 12.00 6 4.5 13.00 11.70 11.7 316-10CM400-10060G ● ● ○ ○ 3.50 10.00 4 5.6 12.40 9.70 9.7 316-16CM800-16045G ● ● ○ ○ 4.00 16.00 8 6.0 16.70 15.50 15.5 316-12CM600-12060G ● ● ○ ○ 4.50 12.00 6 6.5 14.50 11.70 11.7 ● = First choice ○ = Good choice 241
