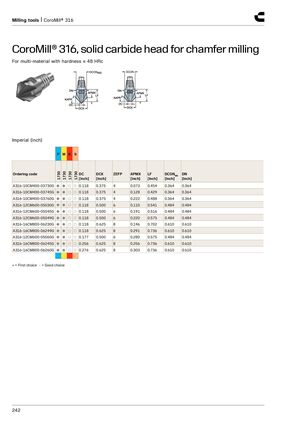

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for chamfer milling​​ For multi-material with hardness ≤ 48 HRc Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC DCX ZEFP APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10CM400-03730G ● ● ○ ○ 0.118 0.375 4 0.073 0.454 0.364 0.364 A316-10CM400-03745G ● ● ○ ○ 0.118 0.375 4 0.128 0.429 0.364 0.364 A316-10CM400-03760G ● ● ○ ○ 0.118 0.375 4 0.222 0.488 0.364 0.364 A316-12CM600-05030G ● ● ○ ○ 0.118 0.500 6 0.110 0.541 0.484 0.484 A316-12CM600-05045G ● ● ○ ○ 0.118 0.500 6 0.191 0.516 0.484 0.484 A316-12CM600-05049G ● ● ○ ○ 0.118 0.500 6 0.220 0.575 0.484 0.484 A316-16CM800-06230G ● ● ○ ○ 0.118 0.625 8 0.146 0.702 0.610 0.610 A316-16CM800-06249G ● ● ○ ○ 0.118 0.625 8 0.291 0.736 0.610 0.610 A316-12CM600-05060G ● ● ○ ○ 0.177 0.500 6 0.280 0.575 0.484 0.484 A316-16CM800-06245G ● ● ○ ○ 0.256 0.625 8 0.256 0.736 0.610 0.610 A316-16CM800-06260G ● ● ○ ○ 0.276 0.625 8 0.303 0.736 0.610 0.610 ● = First choice ○ = Good choice 242
