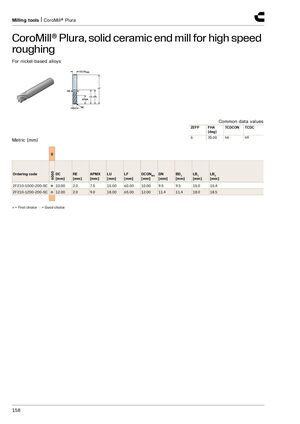

Milling tools | CoroMill® Plura CoroMill® Plura, solid ceramic end mill for high speed roughing​​ For nickel-based alloys Common data values ZEFP FHA TCDCON TCDC [deg] 6 35.00 h6 h9 Metric (mm) S 6060 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F210-1000-200-SC ● 10.00 2.0 7.5 15.00 60.00 10.00 9.5 9.5 15.0 15.4 2F210-1200-200-SC ● 12.00 2.0 9.0 18.00 65.00 12.00 11.4 11.4 18.0 18.5 ● = First choice ○ = Good choice 158
