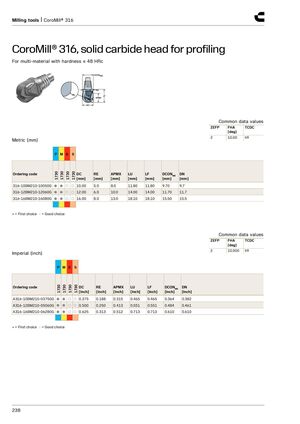

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for profiling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 2 10.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 316-10BM210-10050G ● ● ○ ○ 10.00 5.0 8.0 11.80 11.80 9.70 9.7 316-12BM210-12060G ● ● ○ ○ 12.00 6.0 10.0 14.00 14.00 11.70 11.7 316-16BM210-16080G ● ● ○ ○ 16.00 8.0 13.0 18.10 18.10 15.50 15.5 ● = First choice ○ = Good choice Common data values ZEFP FHA TCDC [deg] 2 10.000 h9 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] A316-10BM210-03750G ● ● ○ ○ 0.375 0.188 0.315 0.465 0.465 0.364 0.382 A316-12BM210-05060G ● ● ○ ○ 0.500 0.250 0.413 0.551 0.551 0.484 0.461 A316-16BM210-06280G ● ● ○ ○ 0.625 0.313 0.512 0.713 0.713 0.610 0.610 ● = First choice ○ = Good choice 238
