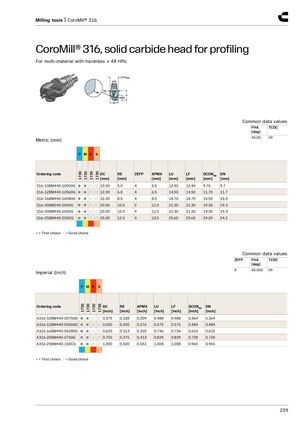

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for profiling​​ For multi-material with hardness ≤ 48 HRc Common data values FHA TCDC [deg] 40.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 316-10BM440-10050G ● ● ○ ○ 10.00 5.0 4 5.5 12.40 12.40 9.70 9.7 316-12BM440-12060G ● ● ○ ○ 12.00 6.0 4 6.5 14.50 14.50 11.70 11.7 316-16BM440-16080G ● ● ○ ○ 16.00 8.0 4 8.5 18.70 18.70 15.50 15.5 316-20BM240-200AG ● ● ○ ○ 20.00 10.0 2 11.0 21.30 21.30 19.30 19.3 316-20BM440-200AG ● ● ○ ○ 20.00 10.0 4 11.0 21.30 21.30 19.30 19.3 316-25BM440-250DG ● ● ○ ○ 25.00 12.5 4 13.5 25.60 25.60 24.20 24.2 ● = First choice ○ = Good choice Common data values ZEFP FHA TCDC [deg] 4 40.000 h9 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] A316-10BM440-03750G ● ● ○ ○ 0.375 0.188 0.209 0.488 0.488 0.364 0.364 A316-12BM440-05060G ● ● ○ ○ 0.500 0.250 0.276 0.575 0.575 0.484 0.484 A316-16BM440-06280G ● ● ○ ○ 0.625 0.313 0.335 0.736 0.736 0.610 0.610 A316-20BM440-075AG ● ● ○ ○ 0.750 0.375 0.413 0.839 0.839 0.728 0.728 A316-25BM440-100CG ● ● ○ ○ 1.000 0.500 0.551 1.008 1.008 0.965 0.965 ● = First choice ○ = Good choice 239
