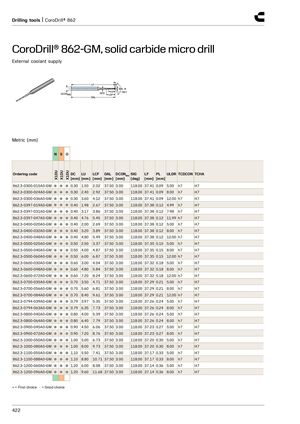

Drilling tools | CoroDrill® 862 CoroDrill® 862-GM, solid carbide micro drill​​ External coolant supply Metric (mm) N S O X1DU X1DU X1DU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 862.3-0300-015A0-GM ● ● ● 0.30 1.50 2.02 37.50 3.00 118.00 37.41 0.09 5.00 h7 H7 862.3-0300-024A0-GM ● ● ● 0.30 2.40 2.92 37.50 3.00 118.00 37.41 0.09 8.00 h7 H7 862.3-0300-036A0-GM ● ● ● 0.30 3.60 4.12 37.50 3.00 118.00 37.41 0.09 12.00 h7 H7 862.3-0397-019A0-GM ● ● ● 0.40 1.98 2.67 37.50 3.00 118.00 37.38 0.12 4.99 h7 H7 862.3-0397-031A0-GM ● ● ● 0.40 3.17 3.86 37.50 3.00 118.00 37.38 0.12 7.98 h7 H7 862.3-0397-047A0-GM ● ● ● 0.40 4.76 5.45 37.50 3.00 118.00 37.38 0.12 11.99 h7 H7 862.3-0400-020A0-GM ● ● ● 0.40 2.00 2.69 37.50 3.00 118.00 37.38 0.12 5.00 h7 H7 862.3-0400-032A0-GM ● ● ● 0.40 3.20 3.89 37.50 3.00 118.00 37.38 0.12 8.00 h7 H7 862.3-0400-048A0-GM ● ● ● 0.40 4.80 5.49 37.50 3.00 118.00 37.38 0.12 12.00 h7 H7 862.3-0500-025A0-GM ● ● ● 0.50 2.50 3.37 37.50 3.00 118.00 37.35 0.15 5.00 h7 H7 862.3-0500-040A0-GM ● ● ● 0.50 4.00 4.87 37.50 3.00 118.00 37.35 0.15 8.00 h7 H7 862.3-0500-060A0-GM ● ● ● 0.50 6.00 6.87 37.50 3.00 118.00 37.35 0.15 12.00 h7 H7 862.3-0600-030A0-GM ● ● ● 0.60 3.00 4.04 37.50 3.00 118.00 37.32 0.18 5.00 h7 H7 862.3-0600-048A0-GM ● ● ● 0.60 4.80 5.84 37.50 3.00 118.00 37.32 0.18 8.00 h7 H7 862.3-0600-072A0-GM ● ● ● 0.60 7.20 8.24 37.50 3.00 118.00 37.32 0.18 12.00 h7 H7 862.3-0700-035A0-GM ● ● ● 0.70 3.50 4.71 37.50 3.00 118.00 37.29 0.21 5.00 h7 H7 862.3-0700-056A0-GM ● ● ● 0.70 5.60 6.81 37.50 3.00 118.00 37.29 0.21 8.00 h7 H7 862.3-0700-084A0-GM ● ● ● 0.70 8.40 9.61 37.50 3.00 118.00 37.29 0.21 12.00 h7 H7 862.3-0794-039A0-GM ● ● ● 0.79 3.97 5.35 37.50 3.00 118.00 37.26 0.24 5.00 h7 H7 862.3-0794-063A0-GM ● ● ● 0.79 6.35 7.73 37.50 3.00 118.00 37.26 0.24 8.00 h7 H7 862.3-0800-040A0-GM ● ● ● 0.80 4.00 5.39 37.50 3.00 118.00 37.26 0.24 5.00 h7 H7 862.3-0800-064A0-GM ● ● ● 0.80 6.40 7.79 37.50 3.00 118.00 37.26 0.24 8.00 h7 H7 862.3-0900-045A0-GM ● ● ● 0.90 4.50 6.06 37.50 3.00 118.00 37.23 0.27 5.00 h7 H7 862.3-0900-072A0-GM ● ● ● 0.90 7.20 8.76 37.50 3.00 118.00 37.23 0.27 8.00 h7 H7 862.3-1000-050A0-GM ● ● ● 1.00 5.00 6.73 37.50 3.00 118.00 37.20 0.30 5.00 h7 H7 862.3-1000-080A0-GM ● ● ● 1.00 8.00 9.73 37.50 3.00 118.00 37.20 0.30 8.00 h7 H7 862.3-1100-055A0-GM ● ● ● 1.10 5.50 7.41 37.50 3.00 118.00 37.17 0.33 5.00 h7 H7 862.3-1100-088A0-GM ● ● ● 1.10 8.80 10.71 37.50 3.00 118.00 37.17 0.33 8.00 h7 H7 862.3-1200-060A0-GM ● ● ● 1.20 6.00 8.08 37.50 3.00 118.00 37.14 0.36 5.00 h7 H7 862.3-1200-096A0-GM ● ● ● 1.20 9.60 11.68 37.50 3.00 118.00 37.14 0.36 8.00 h7 H7 ● = First choice ○ = Good choice 422
