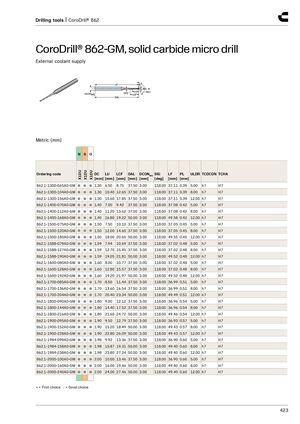

Drilling tools | CoroDrill® 862 CoroDrill® 862-GM, solid carbide micro drill​​ External coolant supply Metric (mm) N S O X1DU X1DU X1DU Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 862.1-1300-065A0-GM ● ● ● 1.30 6.50 8.75 37.50 3.00 118.00 37.11 0.39 5.00 h7 H7 862.1-1300-104A0-GM ● ● ● 1.30 10.40 12.65 37.50 3.00 118.00 37.11 0.39 8.00 h7 H7 862.1-1300-156A0-GM ● ● ● 1.30 15.60 17.85 37.50 3.00 118.00 37.11 0.39 12.00 h7 H7 862.1-1400-070A0-GM ● ● ● 1.40 7.00 9.42 37.50 3.00 118.00 37.08 0.42 5.00 h7 H7 862.1-1400-112A0-GM ● ● ● 1.40 11.20 13.62 37.50 3.00 118.00 37.08 0.42 8.00 h7 H7 862.1-1400-168A0-GM ● ● ● 1.40 16.80 19.22 50.00 3.00 118.00 49.58 0.42 12.00 h7 H7 862.1-1500-075A0-GM ● ● ● 1.50 7.50 10.10 37.50 3.00 118.00 37.05 0.45 5.00 h7 H7 862.1-1500-120A0-GM ● ● ● 1.50 12.00 14.60 37.50 3.00 118.00 37.05 0.45 8.00 h7 H7 862.1-1500-180A0-GM ● ● ● 1.50 18.00 20.60 50.00 3.00 118.00 49.55 0.45 12.00 h7 H7 862.1-1588-079A0-GM ● ● ● 1.59 7.94 10.69 37.50 3.00 118.00 37.02 0.48 5.00 h7 H7 862.1-1588-127A0-GM ● ● ● 1.59 12.70 15.45 37.50 3.00 118.00 37.02 0.48 8.00 h7 H7 862.1-1588-190A0-GM ● ● ● 1.59 19.05 21.81 50.00 3.00 118.00 49.52 0.48 12.00 h7 H7 862.1-1600-080A0-GM ● ● ● 1.60 8.00 10.77 37.50 3.00 118.00 37.02 0.48 5.00 h7 H7 862.1-1600-128A0-GM ● ● ● 1.60 12.80 15.57 37.50 3.00 118.00 37.02 0.48 8.00 h7 H7 862.1-1600-192A0-GM ● ● ● 1.60 19.20 21.97 50.00 3.00 118.00 49.52 0.48 12.00 h7 H7 862.1-1700-085A0-GM ● ● ● 1.70 8.50 11.44 37.50 3.00 118.00 36.99 0.51 5.00 h7 H7 862.1-1700-136A0-GM ● ● ● 1.70 13.60 16.54 37.50 3.00 118.00 36.99 0.51 8.00 h7 H7 862.1-1700-204A0-GM ● ● ● 1.70 20.40 23.34 50.00 3.00 118.00 49.49 0.51 12.00 h7 H7 862.1-1800-090A0-GM ● ● ● 1.80 9.00 12.12 37.50 3.00 118.00 36.96 0.54 5.00 h7 H7 862.1-1800-144A0-GM ● ● ● 1.80 14.40 17.52 37.50 3.00 118.00 36.96 0.54 8.00 h7 H7 862.1-1800-216A0-GM ● ● ● 1.80 21.60 24.72 50.00 3.00 118.00 49.46 0.54 12.00 h7 H7 862.1-1900-095A0-GM ● ● ● 1.90 9.50 12.79 37.50 3.00 118.00 36.93 0.57 5.00 h7 H7 862.1-1900-152A0-GM ● ● ● 1.90 15.20 18.49 50.00 3.00 118.00 49.43 0.57 8.00 h7 H7 862.1-1900-228A0-GM ● ● ● 1.90 22.80 26.09 50.00 3.00 118.00 49.43 0.57 12.00 h7 H7 862.1-1984-099A0-GM ● ● ● 1.98 9.92 13.36 37.50 3.00 118.00 36.90 0.60 5.00 h7 H7 862.1-1984-158A0-GM ● ● ● 1.98 15.87 19.31 50.00 3.00 118.00 49.40 0.60 8.00 h7 H7 862.1-1984-238A0-GM ● ● ● 1.98 23.80 27.24 50.00 3.00 118.00 49.40 0.60 12.00 h7 H7 862.1-2000-100A0-GM ● ● ● 2.00 10.00 13.46 37.50 3.00 118.00 36.90 0.60 5.00 h7 H7 862.1-2000-160A0-GM ● ● ● 2.00 16.00 19.46 50.00 3.00 118.00 49.40 0.60 8.00 h7 H7 862.1-2000-240A0-GM ● ● ● 2.00 24.00 27.46 50.00 3.00 118.00 49.40 0.60 12.00 h7 H7 ● = First choice ○ = Good choice 423
