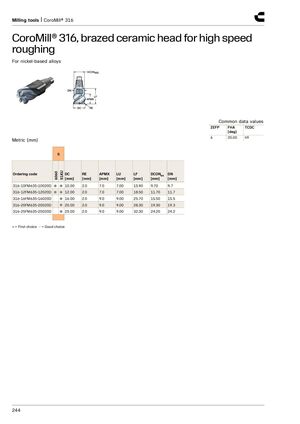

Milling tools | CoroMill® 316 CoroMill® 316, brazed ceramic head for high speed roughing​​ For nickel-based alloys Common data values ZEFP FHA TCDC [deg] 6 35.00 h9 Metric (mm) S S1KU 6060 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 316-10FM635-10020D ● ● 10.00 2.0 7.0 7.00 15.90 9.70 9.7 316-12FM635-12020D ● ● 12.00 2.0 7.0 7.00 18.50 11.70 11.7 316-16FM635-16020D ● 16.00 2.0 9.0 9.00 25.70 15.50 15.5 316-20FM635-20020D ● 20.00 2.0 9.0 9.00 28.30 19.30 19.3 316-25FM635-25020D ● 25.00 2.0 9.0 9.00 32.30 24.20 24.2 ● = First choice ○ = Good choice 244
