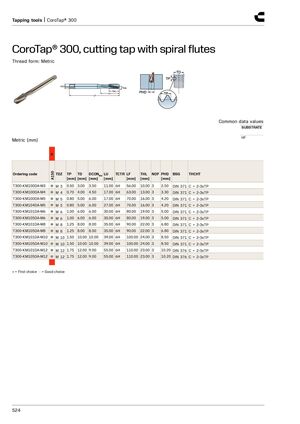

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: Metric Common data values SUBSTRATE HF Metric (mm) K A150 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T300-KM100DA-M3 ● M 3 0.50 3.00 3.50 11.00 6H 56.00 10.00 3 2.50 DIN 371 C = 2-3xTP T300-KM100DA-M4 ● M 4 0.70 4.00 4.50 17.00 6H 63.00 13.00 3 3.30 DIN 371 C = 2-3xTP T300-KM100DA-M5 ● M 5 0.80 5.00 6.00 17.00 6H 70.00 16.00 3 4.20 DIN 371 C = 2-3xTP T300-KM104DA-M5 ● M 5 0.80 5.00 6.00 27.00 6H 70.00 16.00 3 4.20 DIN 371 C = 2-3xTP T300-KM101DA-M6 ● M 6 1.00 6.00 6.00 30.00 6H 80.00 19.00 3 5.00 DIN 371 C = 2-3xTP T300-KM105DA-M6 ● M 6 1.00 6.00 6.00 30.00 6H 80.00 19.00 3 5.00 DIN 371 C = 2-3xTP T300-KM101DA-M8 ● M 8 1.25 8.00 8.00 35.00 6H 90.00 22.00 3 6.80 DIN 371 C = 2-3xTP T300-KM105DA-M8 ● M 8 1.25 8.00 8.00 35.00 6H 90.00 22.00 3 6.80 DIN 371 C = 2-3xTP T300-KM101DA-M10 ● M 10 1.50 10.00 10.00 39.00 6H 100.00 24.00 3 8.50 DIN 371 C = 2-3xTP T300-KM105DA-M10 ● M 10 1.50 10.00 10.00 39.00 6H 100.00 24.00 3 8.50 DIN 371 C = 2-3xTP T300-KM101DA-M12 ● M 12 1.75 12.00 9.00 55.00 6H 110.00 23.00 3 10.20 DIN 376 C = 2-3xTP T300-KM105DA-M12 ● M 12 1.75 12.00 9.00 55.00 6H 110.00 23.00 3 10.20 DIN 376 C = 2-3xTP ● = First choice ○ = Good choice 524
