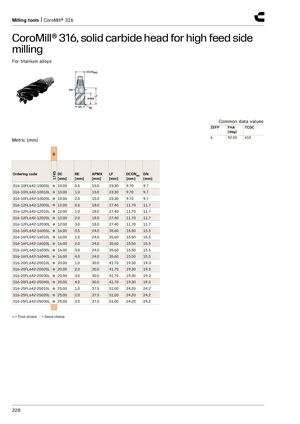

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for high feed side milling​​ For titanium alloys Common data values ZEFP FHA TCDC [deg] 6 42.00 h10 Metric (mm) S 1745 Ordering code DC RE APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10FL642-10005L ● 10.00 0.5 15.0 23.30 9.70 9.7 316-10FL642-10010L ● 10.00 1.0 15.0 23.30 9.70 9.7 316-10FL642-10020L ● 10.00 2.0 15.0 23.30 9.70 9.7 316-12FL642-12005L ● 12.00 0.5 18.0 27.40 11.70 11.7 316-12FL642-12010L ● 12.00 1.0 18.0 27.40 11.70 11.7 316-12FL642-12020L ● 12.00 2.0 18.0 27.40 11.70 11.7 316-12FL642-12030L ● 12.00 3.0 18.0 27.40 11.70 11.7 316-16FL642-16005L ● 16.00 0.5 24.0 35.60 15.50 15.5 316-16FL642-16010L ● 16.00 1.0 24.0 35.60 15.50 15.5 316-16FL642-16020L ● 16.00 2.0 24.0 35.60 15.50 15.5 316-16FL642-16030L ● 16.00 3.0 24.0 35.60 15.50 15.5 316-16FL642-16040L ● 16.00 4.0 24.0 35.60 15.50 15.5 316-20FL642-20010L ● 20.00 1.0 30.0 41.70 19.30 19.3 316-20FL642-20020L ● 20.00 2.0 30.0 41.70 19.30 19.3 316-20FL642-20030L ● 20.00 3.0 30.0 41.70 19.30 19.3 316-20FL642-20040L ● 20.00 4.0 30.0 41.70 19.30 19.3 316-25FL642-25010L ● 25.00 1.0 37.5 51.00 24.20 24.2 316-25FL642-25020L ● 25.00 2.0 37.5 51.00 24.20 24.2 316-25FL642-25030L ● 25.00 3.0 37.5 51.00 24.20 24.2 ● = First choice ○ = Good choice 228
