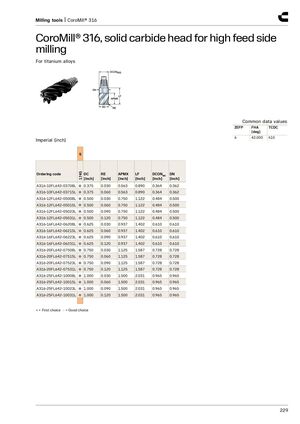

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for high feed side milling​​ For titanium alloys Common data values ZEFP FHA TCDC [deg] 6 42.000 h10 Imperial (inch) S 1745 Ordering code DC RE APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10FL642-03708L ● 0.375 0.030 0.563 0.890 0.364 0.362 A316-10FL642-03715L ● 0.375 0.060 0.563 0.890 0.364 0.362 A316-12FL642-05008L ● 0.500 0.030 0.750 1.122 0.484 0.500 A316-12FL642-05015L ● 0.500 0.060 0.750 1.122 0.484 0.500 A316-12FL642-05023L ● 0.500 0.090 0.750 1.122 0.484 0.500 A316-12FL642-05031L ● 0.500 0.120 0.750 1.122 0.484 0.500 A316-16FL642-06208L ● 0.625 0.030 0.937 1.402 0.610 0.610 A316-16FL642-06215L ● 0.625 0.060 0.937 1.402 0.610 0.610 A316-16FL642-06223L ● 0.625 0.090 0.937 1.402 0.610 0.610 A316-16FL642-06231L ● 0.625 0.120 0.937 1.402 0.610 0.610 A316-20FL642-07508L ● 0.750 0.030 1.125 1.587 0.728 0.728 A316-20FL642-07515L ● 0.750 0.060 1.125 1.587 0.728 0.728 A316-20FL642-07523L ● 0.750 0.090 1.125 1.587 0.728 0.728 A316-20FL642-07531L ● 0.750 0.120 1.125 1.587 0.728 0.728 A316-25FL642-10008L ● 1.000 0.030 1.500 2.031 0.965 0.965 A316-25FL642-10015L ● 1.000 0.060 1.500 2.031 0.965 0.965 A316-25FL642-10023L ● 1.000 0.090 1.500 2.031 0.965 0.965 A316-25FL642-10031L ● 1.000 0.120 1.500 2.031 0.965 0.965 ● = First choice ○ = Good choice 229
