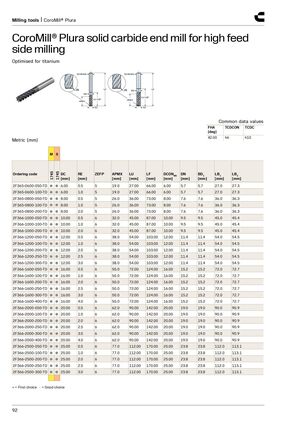

Milling tools | CoroMill® Plura CoroMill® Plura solid carbide end mill for high feed side milling​​ Optimised for titanium DCON MS DCON MS RE LF RE LF DN DN LU / LB1 LU / LB1 APMX APMX DC DC Common data values FHA TCDCON TCDC [deg] 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1_ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F365-0600-050-TD ● ● 6.00 0.5 5 19.0 27.00 66.00 6.00 5.7 5.7 27.0 27.3 2F365-0600-100-TD ● ● 6.00 1.0 5 19.0 27.00 66.00 6.00 5.7 5.7 27.0 27.3 2F365-0800-050-TD ● ● 8.00 0.5 5 26.0 36.00 73.00 8.00 7.6 7.6 36.0 36.3 2F365-0800-100-TD ● ● 8.00 1.0 5 26.0 36.00 73.00 8.00 7.6 7.6 36.0 36.3 2F365-0800-200-TD ● ● 8.00 2.0 5 26.0 36.00 73.00 8.00 7.6 7.6 36.0 36.3 2F366-1000-050-TD ● ● 10.00 0.5 6 32.0 45.00 87.00 10.00 9.5 9.5 45.0 45.4 2F366-1000-100-TD ● ● 10.00 1.0 6 32.0 45.00 87.00 10.00 9.5 9.5 45.0 45.4 2F366-1000-200-TD ● ● 10.00 2.0 6 32.0 45.00 87.00 10.00 9.5 9.5 45.0 45.4 2F366-1200-050-TD ● ● 12.00 0.5 6 38.0 54.00 103.00 12.00 11.4 11.4 54.0 54.5 2F366-1200-100-TD ● ● 12.00 1.0 6 38.0 54.00 103.00 12.00 11.4 11.4 54.0 54.5 2F366-1200-200-TD ● ● 12.00 2.0 6 38.0 54.00 103.00 12.00 11.4 11.4 54.0 54.5 2F366-1200-250-TD ● ● 12.00 2.5 6 38.0 54.00 103.00 12.00 11.4 11.4 54.0 54.5 2F366-1200-300-TD ● ● 12.00 3.0 6 38.0 54.00 103.00 12.00 11.4 11.4 54.0 54.5 2F366-1600-050-TD ● ● 16.00 0.5 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-1600-100-TD ● ● 16.00 1.0 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-1600-200-TD ● ● 16.00 2.0 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-1600-250-TD ● ● 16.00 2.5 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-1600-300-TD ● ● 16.00 3.0 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-1600-400-TD ● ● 16.00 4.0 6 50.0 72.00 124.00 16.00 15.2 15.2 72.0 72.7 2F366-2000-050-TD ● ● 20.00 0.5 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2000-100-TD ● ● 20.00 1.0 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2000-200-TD ● ● 20.00 2.0 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2000-250-TD ● ● 20.00 2.5 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2000-300-TD ● ● 20.00 3.0 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2000-400-TD ● ● 20.00 4.0 6 62.0 90.00 142.00 20.00 19.0 19.0 90.0 90.9 2F366-2500-050-TD ● ● 25.00 0.5 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 2F366-2500-100-TD ● ● 25.00 1.0 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 2F366-2500-200-TD ● ● 25.00 2.0 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 2F366-2500-250-TD ● ● 25.00 2.5 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 2F366-2500-300-TD ● ● 25.00 3.0 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 ● = First choice ○ = Good choice 92
