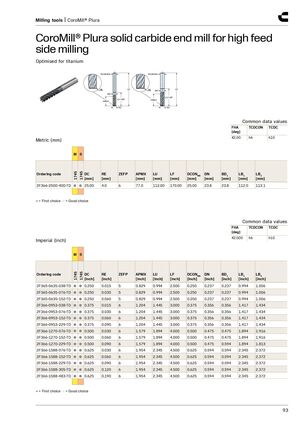

Milling tools | CoroMill® Plura CoroMill® Plura solid carbide end mill for high feed side milling​​ Optimised for titanium DCON MS DCON MS RE LF RE LF DN DN LU / LB1 LU / LB1 APMX APMX DC DC Common data values FHA TCDCON TCDC [deg] 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F366-2500-400-TD ● ● 25.00 4.0 6 77.0 112.00 170.00 25.00 23.8 23.8 112.0 113.1 ● = First choice ○ = Good choice Common data values FHA TCDCON TCDC [deg] 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F365-0635-038-TD ● ● 0.250 0.015 5 0.829 0.994 2.500 0.250 0.237 0.237 0.994 1.006 2F365-0635-076-TD ● ● 0.250 0.030 5 0.829 0.994 2.500 0.250 0.237 0.237 0.994 1.006 2F365-0635-152-TD ● ● 0.250 0.060 5 0.829 0.994 2.500 0.250 0.237 0.237 0.994 1.006 2F366-0953-038-TD ● ● 0.375 0.015 6 1.204 1.445 3.000 0.375 0.356 0.356 1.417 1.434 2F366-0953-076-TD ● ● 0.375 0.030 6 1.204 1.445 3.000 0.375 0.356 0.356 1.417 1.434 2F366-0953-152-TD ● ● 0.375 0.060 6 1.204 1.445 3.000 0.375 0.356 0.356 1.417 1.434 2F366-0953-229-TD ● ● 0.375 0.090 6 1.204 1.445 3.000 0.375 0.356 0.356 1.417 1.434 2F366-1270-076-TD ● ● 0.500 0.030 6 1.579 1.894 4.000 0.500 0.475 0.475 1.894 1.916 2F366-1270-152-TD ● ● 0.500 0.060 6 1.579 1.894 4.000 0.500 0.475 0.475 1.894 1.916 2F366-1270-229-TD ● ● 0.500 0.090 6 1.579 1.894 4.000 0.500 0.475 0.594 1.894 1.813 2F366-1588-076-TD ● ● 0.625 0.030 6 1.954 2.345 4.500 0.625 0.594 0.594 2.345 2.372 2F366-1588-152-TD ● ● 0.625 0.060 6 1.954 2.345 4.500 0.625 0.594 0.594 2.345 2.372 2F366-1588-229-TD ● ● 0.625 0.090 6 1.954 2.345 4.500 0.625 0.594 0.594 2.345 2.372 2F366-1588-305-TD ● ● 0.625 0.120 6 1.954 2.345 4.500 0.625 0.594 0.594 2.345 2.372 2F366-1588-483-TD ● ● 0.625 0.190 6 1.954 2.345 4.500 0.625 0.594 0.594 2.345 2.372 ● = First choice ○ = Good choice 93
