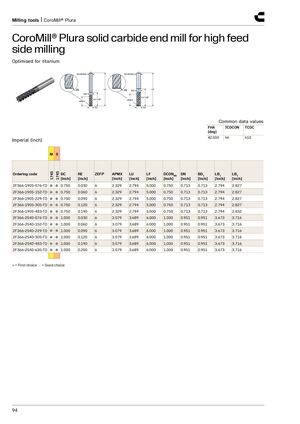

Milling tools | CoroMill® Plura CoroMill® Plura solid carbide end mill for high feed side milling​​ Optimised for titanium DCON MS DCON MS RE LF RE LF DN DN LU / LB1 LU / LB1 APMX APMX DC DC Common data values FHA TCDCON TCDC [deg] 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F366-1905-076-TD ● ● 0.750 0.030 6 2.329 2.794 5.000 0.750 0.713 0.713 2.794 2.827 2F366-1905-152-TD ● ● 0.750 0.060 6 2.329 2.794 5.000 0.750 0.713 0.713 2.794 2.827 2F366-1905-229-TD ● ● 0.750 0.090 6 2.329 2.794 5.000 0.750 0.713 0.713 2.794 2.827 2F366-1905-305-TD ● ● 0.750 0.120 6 2.329 2.794 5.000 0.750 0.713 0.713 2.794 2.827 2F366-1905-483-TD ● ● 0.750 0.190 6 2.329 2.794 5.000 0.750 0.713 0.713 2.794 2.832 2F366-2540-076-TD ● ● 1.000 0.030 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 2F366-2540-152-TD ● ● 1.000 0.060 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 2F366-2540-229-TD ● ● 1.000 0.090 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 2F366-2540-305-TD ● ● 1.000 0.120 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 2F366-2540-483-TD ● ● 1.000 0.190 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 2F366-2540-635-TD ● ● 1.000 0.250 6 3.079 3.689 6.000 1.000 0.951 0.951 3.673 3.716 ● = First choice ○ = Good choice 94
