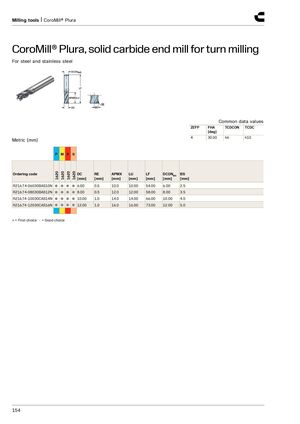

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for turn milling​​ For steel and stainless steel Common data values ZEFP FHA TCDCON TCDC [deg] 4 30.00 h6 h10 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE APMX LU LF DCONMS BS [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.T4-06030BAS10N ● ● ● ● 6.00 0.5 10.0 10.00 54.00 6.00 2.5 R216.T4-08030BAS12N ● ● ● ● 8.00 0.5 12.0 12.00 58.00 8.00 3.5 R216.T4-10030CAS14N ● ● ● ● 10.00 1.0 14.0 14.00 66.00 10.00 4.0 R216.T4-12030CAS16N ● ● ● ● 12.00 1.0 16.0 16.00 73.00 12.00 5.0 ● = First choice ○ = Good choice 154
