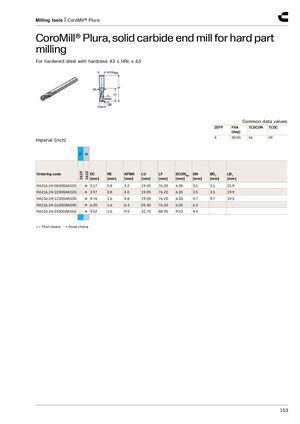

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for hard part milling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values ZEFP FHA TCDCON TCDC [deg] 4 30.00 h6 h9 Imperial (inch) P H 1610 1610 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] RA216.24-0830BAK02G ○ ● 3.17 0.8 3.2 19.05 76.20 6.35 3.1 3.1 21.9 RA216.24-1030BAK02G ○ ● 3.97 0.8 4.0 19.05 76.20 6.35 3.5 3.5 19.9 RA216.24-1230DAK03G ● 4.76 1.6 4.8 19.05 76.20 6.35 4.7 4.7 19.5 RA216.24-1630DAK04G ● 6.35 1.6 6.3 25.40 76.20 6.35 6.3 RA216.24-2430DAK06G ○ ● 9.52 1.6 9.5 31.75 88.90 9.52 9.4 ● = First choice ○ = Good choice 153
