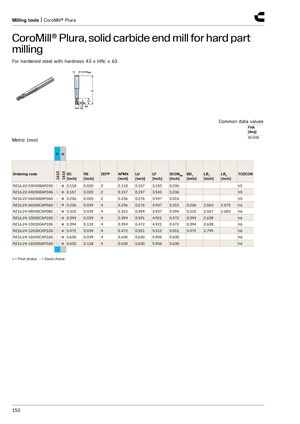

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for hard part milling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA [deg] 30.000 Metric (mm) P H 1610 1610 Ordering code DC RE ZEFP APMX LU LF DCONMS BD 1 _ LB 1 _ LB 2 _ TCDCON [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] R216.22-03030BAP03G ○ ● 0.118 0.020 2 0.118 0.157 3.150 0.236 h5 R216.22-04030BAP04G ○ ● 0.157 0.020 2 0.157 0.197 3.543 0.236 h5 R216.22-06030BAP06G ○ ● 0.236 0.020 2 0.236 0.276 3.937 0.315 h5 R216.24-06030CAP06G ○ ● 0.236 0.039 4 0.236 0.276 3.937 0.315 0.236 2.063 2.075 h6 R216.24-08030CAP08G ○ ● 0.315 0.039 4 0.315 0.394 3.937 0.394 0.315 2.067 2.083 h6 R216.24-10030CAP10G ○ ● 0.394 0.039 4 0.394 0.591 4.921 0.472 0.394 2.638 h6 R216.24-10030GAP10G ○ ● 0.394 0.118 4 0.394 0.472 4.921 0.472 0.394 2.638 h6 R216.24-12030CAP12G ○ ● 0.472 0.039 4 0.472 0.551 5.512 0.551 0.472 2.795 h6 R216.24-16030CAP16G ○ ● 0.630 0.039 4 0.630 0.630 5.906 0.630 h6 R216.24-16030GAP16G ○ ● 0.630 0.118 4 0.630 0.630 5.906 0.630 h6 ● = First choice ○ = Good choice 152
