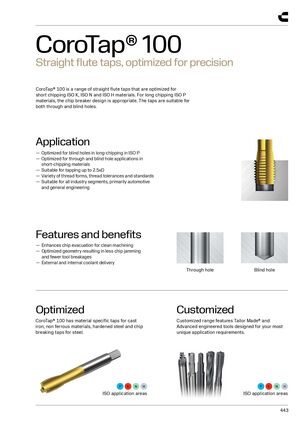

Tapping tools | CoroTap® 100 CoroTap® 100 Straight flute taps, optimized for precision​ CoroTap® 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. For long chipping ISO P materials, the chip breaker design is appropriate. The taps are suitable for both through and blind holes.​ Application — Optimized for blind holes in long-chipping in ISO P​ — Optimized for through and blind hole applications in short-chipping materials​ — Suitable for tapping up to 2.5xD​ — Variety of thread forms, thread tolerances and standards​ — Suitable for all industry segments, primarily automotive and general engineering Features and benefits — Enhances chip evacuation for clean machining​ — Optimized geometry resulting in less chip jamming and fewer tool breakages​ — External and internal coolant delivery​ Through hole Blind hole Optimized Customized CoroTap® 100 has material specific taps for cast Customized range features Tailor Made® and iron, non ferrous materials, hardened steel and chip Advanced engineered tools designed for your most breaking taps for steel. unique application requirements. ISO application areas ISO application areas 443
