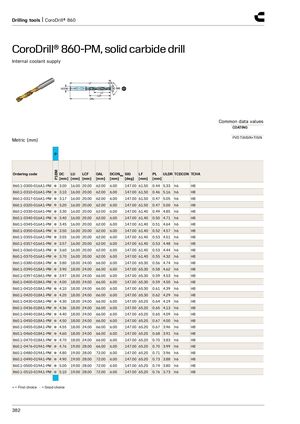

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-016A1-PM ● 3.00 16.00 20.00 62.00 6.00 147.00 61.50 0.44 5.33 h6 H8 860.1-0310-016A1-PM ● 3.10 16.00 20.00 62.00 6.00 147.00 61.50 0.46 5.16 h6 H8 860.1-0317-016A1-PM ● 3.17 16.00 20.00 62.00 6.00 147.00 61.50 0.47 5.05 h6 H8 860.1-0320-016A1-PM ● 3.20 16.00 20.00 62.00 6.00 147.00 61.50 0.47 5.00 h6 H8 860.1-0330-016A1-PM ● 3.30 16.00 20.00 62.00 6.00 147.00 61.40 0.49 4.85 h6 H8 860.1-0340-016A1-PM ● 3.40 16.00 20.00 62.00 6.00 147.00 61.40 0.50 4.71 h6 H8 860.1-0345-016A1-PM ● 3.45 16.00 20.00 62.00 6.00 147.00 61.40 0.51 4.64 h6 H8 860.1-0350-016A1-PM ● 3.50 16.00 20.00 62.00 6.00 147.00 61.40 0.52 4.57 h6 H8 860.1-0355-016A1-PM ● 3.55 16.00 20.00 62.00 6.00 147.00 61.40 0.53 4.51 h6 H8 860.1-0357-016A1-PM ● 3.57 16.00 20.00 62.00 6.00 147.00 61.40 0.53 4.48 h6 H8 860.1-0360-016A1-PM ● 3.60 16.00 20.00 62.00 6.00 147.00 61.40 0.53 4.44 h6 H8 860.1-0370-016A1-PM ● 3.70 16.00 20.00 62.00 6.00 147.00 61.40 0.55 4.32 h6 H8 860.1-0380-018A1-PM ● 3.80 18.00 24.00 66.00 6.00 147.00 65.30 0.56 4.74 h6 H8 860.1-0390-018A1-PM ● 3.90 18.00 24.00 66.00 6.00 147.00 65.30 0.58 4.62 h6 H8 860.1-0397-018A1-PM ● 3.97 18.00 24.00 66.00 6.00 147.00 65.30 0.59 4.53 h6 H8 860.1-0400-018A1-PM ● 4.00 18.00 24.00 66.00 6.00 147.00 65.30 0.59 4.50 h6 H8 860.1-0410-018A1-PM ● 4.10 18.00 24.00 66.00 6.00 147.00 65.30 0.61 4.39 h6 H8 860.1-0420-018A1-PM ● 4.20 18.00 24.00 66.00 6.00 147.00 65.30 0.62 4.29 h6 H8 860.1-0430-018A1-PM ● 4.30 18.00 24.00 66.00 6.00 147.00 65.20 0.64 4.19 h6 H8 860.1-0436-018A1-PM ● 4.36 18.00 24.00 66.00 6.00 147.00 65.20 0.65 4.13 h6 H8 860.1-0440-018A1-PM ● 4.40 18.00 24.00 66.00 6.00 147.00 65.20 0.65 4.09 h6 H8 860.1-0450-018A1-PM ● 4.50 18.00 24.00 66.00 6.00 147.00 65.20 0.67 4.00 h6 H8 860.1-0455-018A1-PM ● 4.55 18.00 24.00 66.00 6.00 147.00 65.20 0.67 3.96 h6 H8 860.1-0460-018A1-PM ● 4.60 18.00 24.00 66.00 6.00 147.00 65.20 0.68 3.91 h6 H8 860.1-0470-018A1-PM ● 4.70 18.00 24.00 66.00 6.00 147.00 65.20 0.70 3.83 h6 H8 860.1-0476-019A1-PM ● 4.76 19.00 28.00 66.00 6.00 147.00 65.20 0.70 3.99 h6 H8 860.1-0480-019A1-PM ● 4.80 19.00 28.00 72.00 6.00 147.00 65.20 0.71 3.96 h6 H8 860.1-0490-019A1-PM ● 4.90 19.00 28.00 72.00 6.00 147.00 65.20 0.73 3.88 h6 H8 860.1-0500-019A1-PM ● 5.00 19.00 28.00 72.00 6.00 147.00 65.20 0.74 3.80 h6 H8 860.1-0510-019A1-PM ● 5.10 19.00 28.00 72.00 6.00 147.00 65.20 0.76 3.73 h6 H8 ● = First choice ○ = Good choice 382
