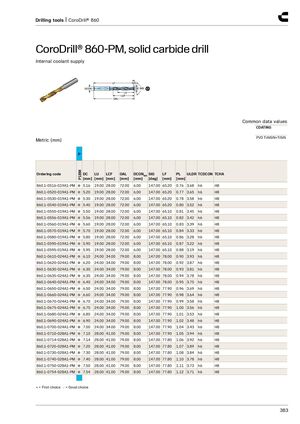

Drilling tools | CoroDrill® 860 CoroDrill® 860-PM, solid carbide drill​​ Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P P1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0516-019A1-PM ● 5.16 19.00 28.00 72.00 6.00 147.00 65.20 0.76 3.68 h6 H8 860.1-0520-019A1-PM ● 5.20 19.00 28.00 72.00 6.00 147.00 65.20 0.77 3.65 h6 H8 860.1-0530-019A1-PM ● 5.30 19.00 28.00 72.00 6.00 147.00 65.20 0.78 3.58 h6 H8 860.1-0540-019A1-PM ● 5.40 19.00 28.00 72.00 6.00 147.00 65.20 0.80 3.52 h6 H8 860.1-0550-019A1-PM ● 5.50 19.00 28.00 72.00 6.00 147.00 65.10 0.81 3.45 h6 H8 860.1-0556-019A1-PM ● 5.56 19.00 28.00 72.00 6.00 147.00 65.10 0.82 3.42 h6 H8 860.1-0560-019A1-PM ● 5.60 19.00 28.00 72.00 6.00 147.00 65.10 0.83 3.39 h6 H8 860.1-0570-019A1-PM ● 5.70 19.00 28.00 72.00 6.00 147.00 65.10 0.84 3.33 h6 H8 860.1-0580-019A1-PM ● 5.80 19.00 28.00 72.00 6.00 147.00 65.10 0.86 3.28 h6 H8 860.1-0590-019A1-PM ● 5.90 19.00 28.00 72.00 6.00 147.00 65.10 0.87 3.22 h6 H8 860.1-0595-019A1-PM ● 5.95 19.00 28.00 72.00 6.00 147.00 65.10 0.88 3.19 h6 H8 860.1-0610-024A1-PM ● 6.10 24.00 34.00 79.00 8.00 147.00 78.00 0.90 3.93 h6 H8 860.1-0620-024A1-PM ● 6.20 24.00 34.00 79.00 8.00 147.00 78.00 0.92 3.87 h6 H8 860.1-0630-024A1-PM ● 6.30 24.00 34.00 79.00 8.00 147.00 78.00 0.93 3.81 h6 H8 860.1-0635-024A1-PM ● 6.35 24.00 34.00 79.00 8.00 147.00 78.00 0.94 3.78 h6 H8 860.1-0640-024A1-PM ● 6.40 24.00 34.00 79.00 8.00 147.00 78.00 0.95 3.75 h6 H8 860.1-0650-024A1-PM ● 6.50 24.00 34.00 79.00 8.00 147.00 77.90 0.96 3.69 h6 H8 860.1-0660-024A1-PM ● 6.60 24.00 34.00 79.00 8.00 147.00 77.90 0.98 3.64 h6 H8 860.1-0670-024A1-PM ● 6.70 24.00 34.00 79.00 8.00 147.00 77.90 0.99 3.58 h6 H8 860.1-0675-024A1-PM ● 6.75 24.00 34.00 79.00 8.00 147.00 77.90 1.00 3.56 h6 H8 860.1-0680-024A1-PM ● 6.80 24.00 34.00 79.00 8.00 147.00 77.90 1.01 3.53 h6 H8 860.1-0690-024A1-PM ● 6.90 24.00 34.00 79.00 8.00 147.00 77.90 1.02 3.48 h6 H8 860.1-0700-024A1-PM ● 7.00 24.00 34.00 79.00 8.00 147.00 77.90 1.04 3.43 h6 H8 860.1-0710-028A1-PM ● 7.10 28.00 41.00 79.00 8.00 147.00 77.90 1.05 3.94 h6 H8 860.1-0714-028A1-PM ● 7.14 28.00 41.00 79.00 8.00 147.00 77.80 1.06 3.92 h6 H8 860.1-0720-028A1-PM ● 7.20 28.00 41.00 79.00 8.00 147.00 77.80 1.07 3.89 h6 H8 860.1-0730-028A1-PM ● 7.30 28.00 41.00 79.00 8.00 147.00 77.80 1.08 3.84 h6 H8 860.1-0740-028A1-PM ● 7.40 28.00 41.00 79.00 8.00 147.00 77.80 1.10 3.78 h6 H8 860.1-0750-028A1-PM ● 7.50 28.00 41.00 79.00 8.00 147.00 77.80 1.11 3.73 h6 H8 860.1-0754-028A1-PM ● 7.54 28.00 41.00 79.00 8.00 147.00 77.80 1.12 3.71 h6 H8 ● = First choice ○ = Good choice 383
