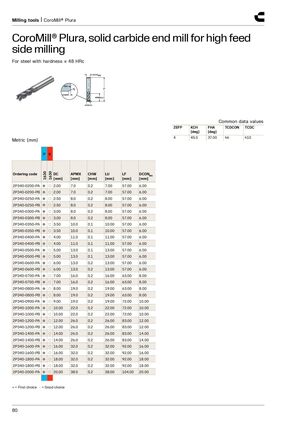

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ For steel with hardness ≤ 48 HRc Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 45.0 37.00 h6 h10 Metric (mm) P K 1630 1630 Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P340-0200-PA ● ○ 2.00 7.0 0.2 7.00 57.00 6.00 2P340-0200-PB ● ○ 2.00 7.0 0.2 7.00 57.00 6.00 2P340-0250-PA ● ○ 2.50 8.0 0.2 8.00 57.00 6.00 2P340-0250-PB ● ○ 2.50 8.0 0.2 8.00 57.00 6.00 2P340-0300-PA ● ○ 3.00 8.0 0.2 8.00 57.00 6.00 2P340-0300-PB ● ○ 3.00 8.0 0.2 8.00 57.00 6.00 2P340-0350-PA ● ○ 3.50 10.0 0.1 10.00 57.00 6.00 2P340-0350-PB ● ○ 3.50 10.0 0.1 10.00 57.00 6.00 2P340-0400-PA ● ○ 4.00 11.0 0.1 11.00 57.00 6.00 2P340-0400-PB ● ○ 4.00 11.0 0.1 11.00 57.00 6.00 2P340-0500-PA ● ○ 5.00 13.0 0.1 13.00 57.00 6.00 2P340-0500-PB ● ○ 5.00 13.0 0.1 13.00 57.00 6.00 2P340-0600-PA ● ○ 6.00 13.0 0.2 13.00 57.00 6.00 2P340-0600-PB ● ○ 6.00 13.0 0.2 13.00 57.00 6.00 2P340-0700-PA ● ○ 7.00 16.0 0.2 16.00 63.00 8.00 2P340-0700-PB ● ○ 7.00 16.0 0.2 16.00 63.00 8.00 2P340-0800-PA ● ○ 8.00 19.0 0.2 19.00 63.00 8.00 2P340-0800-PB ● ○ 8.00 19.0 0.2 19.00 63.00 8.00 2P340-0900-PA ● ○ 9.00 19.0 0.2 19.00 72.00 10.00 2P340-1000-PA ● ○ 10.00 22.0 0.2 22.00 72.00 10.00 2P340-1000-PB ● ○ 10.00 22.0 0.2 22.00 72.00 10.00 2P340-1200-PA ● ○ 12.00 26.0 0.2 26.00 83.00 12.00 2P340-1200-PB ● ○ 12.00 26.0 0.2 26.00 83.00 12.00 2P340-1400-PA ● ○ 14.00 26.0 0.2 26.00 83.00 14.00 2P340-1400-PB ● ○ 14.00 26.0 0.2 26.00 83.00 14.00 2P340-1600-PA ● ○ 16.00 32.0 0.2 32.00 92.00 16.00 2P340-1600-PB ● ○ 16.00 32.0 0.2 32.00 92.00 16.00 2P340-1800-PA ● ○ 18.00 32.0 0.2 32.00 92.00 18.00 2P340-1800-PB ● ○ 18.00 32.0 0.2 32.00 92.00 18.00 2P340-2000-PA ● ○ 20.00 38.0 0.2 38.00 104.00 20.00 ● = First choice ○ = Good choice 80
