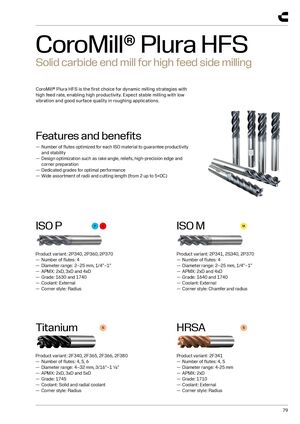

CoroMill® Plura HFS Solid carbide end mill for high feed side milling CoroMill® Plura HFS is the first choice for dynamic milling strategies with high feed rate, enabling high productivity. Expect stable milling with low vibration and good surface quality in roughing applications. Features and benefits — Number of flutes optimized for each ISO material to guarantee productivity and stability — Design optimization such as rake angle, reliefs, high-precision edge and corner preparation — Dedicated grades for optimal performance — Wide assortment of radii and cutting length (from 2 up to 5×DC) ISO P ISO M Product variant: 2P340, 2P360, 2P370 Product variant: 2P341, 2S340, 2P370 — Number of flutes: 4 — Number of flutes: 4 — Diameter range: 2–25 mm, 1/4”–1” — Diameter range: 2–25 mm, 1/4”–1” — APMX: 2xD, 3xD and 4xD — APMX: 2xD and 4xD — Grade: 1630 and 1740 — Grade: 1640 and 1740 — Coolant: External — Coolant: External — Corner style: Radius — Corner style: Chamfer and radius Titanium HRSA Product variant: 2F340, 2F365, 2F366, 2F380 Product variant: 2F341 — Number of flutes: 4, 5, 6 — Number of flutes: 4, 5 — Diameter range: 4–32 mm, 3/16”–1 ¼” — Diameter range: 4-25 mm — APMX: 2xD, 3xD and 5xD — APMX: 2xD — Grade: 1745 — Grade: 1710 — Coolant: Solid and radial coolant — Coolant: External — Corner style: Radius — Corner style: Radius 79
