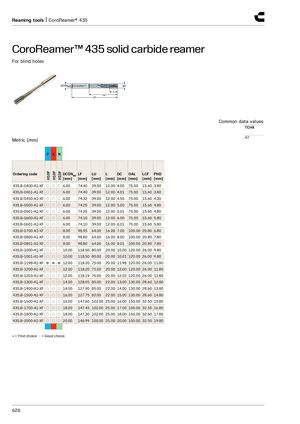

Reaming tools | CoroReamer® 435 CoroReamer™ 435 solid carbide reamer​​ For blind holes Common data values TCHA H7 Metric (mm) P K N H10F H10F H10F Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 435.B-0400-A1-XF ○ ○ ○ 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 435.B-0401-A1-XF ○ ○ ○ 6.00 74.40 39.00 12.00 4.01 75.00 15.60 3.80 435.B-0450-A1-XF ○ ○ ○ 6.00 74.32 39.00 12.00 4.50 75.00 15.60 4.30 435.B-0500-A1-XF ○ ○ ○ 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 435.B-0501-A1-XF ○ ○ ○ 6.00 74.25 39.00 12.00 5.01 75.00 15.60 4.80 435.B-0600-A1-XF ○ ○ ○ 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 435.B-0601-A1-XF ○ ○ ○ 6.00 74.10 39.00 12.00 6.01 75.00 15.60 5.80 435.B-0700-A1-XF ○ ○ ○ 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 435.B-0800-A1-XF ○ ○ ○ 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 435.B-0801-A1-XF ○ ○ ○ 8.00 98.80 64.00 16.00 8.01 100.00 20.80 7.80 435.B-1000-A1-XF ○ ○ ○ 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 435.B-1001-A1-XF ○ ○ ○ 10.00 118.50 80.00 20.00 10.01 120.00 26.00 9.80 435.B-1198-A1-XF ● ● ● 12.00 118.20 75.00 20.00 11.98 120.00 26.00 11.80 435.B-1200-A1-XF ○ ○ ○ 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 435.B-1203-A1-XF ○ ○ ○ 12.00 118.19 75.00 20.00 12.03 120.00 26.00 11.80 435.B-1300-A1-XF ○ ○ ○ 14.00 128.05 85.00 22.00 13.00 130.00 28.60 12.80 435.B-1400-A1-XF ○ ○ ○ 14.00 127.90 85.00 22.00 14.00 130.00 28.60 13.80 435.B-1500-A1-XF ○ ○ ○ 16.00 127.75 82.00 22.00 15.00 130.00 28.60 14.80 435.B-1600-A1-XF ○ ○ ○ 16.00 147.60 102.00 25.00 16.00 150.00 32.50 15.80 435.B-1700-A1-XF ○ ○ ○ 18.00 147.45 102.00 25.00 17.00 150.00 32.50 16.80 435.B-1800-A1-XF ○ ○ ○ 18.00 147.30 102.00 25.00 18.00 150.00 32.50 17.80 435.B-2000-A1-XF ○ ○ ○ 20.00 146.99 100.00 25.00 20.00 150.00 32.50 19.80 ● = First choice ○ = Good choice 626
