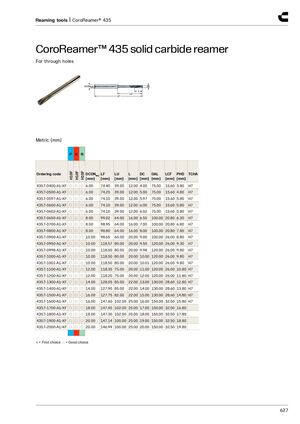

Reaming tools | CoroReamer® 435 CoroReamer™ 435 solid carbide reamer​​ For through holes Metric (mm) P K N H10F H10F H10F Ordering code DCONMS LF LU L DC OAL LCF PHD TCHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 435.T-0400-A1-XF ○ ○ ○ 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 H7 435.T-0500-A1-XF ○ ○ ○ 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 H7 435.T-0597-A1-XF ○ ○ ○ 6.00 74.10 39.00 12.00 5.97 75.00 15.60 5.80 H7 435.T-0600-A1-XF ○ ○ ○ 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 H7 435.T-0602-A1-XF ○ ○ ○ 6.00 74.10 39.00 12.00 6.02 75.00 15.60 5.80 H7 435.T-0650-A1-XF ○ ○ ○ 8.00 99.02 64.00 16.00 6.50 100.00 20.80 6.30 H7 435.T-0700-A1-XF ○ ○ ○ 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 H7 435.T-0800-A1-XF ○ ○ ○ 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 H7 435.T-0900-A1-XF ○ ○ ○ 10.00 98.65 60.00 20.00 9.00 100.00 26.00 8.80 H7 435.T-0950-A1-XF ○ ○ ○ 10.00 118.57 80.00 20.00 9.50 120.00 26.00 9.30 H7 435.T-0998-A1-XF ○ ○ ○ 10.00 118.50 80.00 20.00 9.98 120.00 26.00 9.80 H7 435.T-1000-A1-XF ○ ○ ○ 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 H7 435.T-1001-A1-XF ○ ○ ○ 10.00 118.50 80.00 20.00 10.01 120.00 26.00 9.80 H7 435.T-1100-A1-XF ○ ○ ○ 12.00 118.35 75.00 20.00 11.00 120.00 26.00 10.80 H7 435.T-1200-A1-XF ○ ○ ○ 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 H7 435.T-1300-A1-XF ○ ○ ○ 14.00 128.05 85.00 22.00 13.00 130.00 28.60 12.80 H7 435.T-1400-A1-XF ○ ○ ○ 14.00 127.90 85.00 22.00 14.00 130.00 28.60 13.80 H7 435.T-1500-A1-XF ○ ○ ○ 16.00 127.75 82.00 22.00 15.00 130.00 28.60 14.80 H7 435.T-1600-A1-XF ○ ○ ○ 16.00 147.60 102.00 25.00 16.00 150.00 32.50 15.80 H7 435.T-1700-A1-XF ○ ○ ○ 18.00 147.45 102.00 25.00 17.00 150.00 32.50 16.80 435.T-1800-A1-XF ○ ○ ○ 18.00 147.30 102.00 25.00 18.00 150.00 32.50 17.80 435.T-1900-A1-XF ○ ○ ○ 20.00 147.14 100.00 25.00 19.00 150.00 32.50 18.80 435.T-2000-A1-XF ○ ○ ○ 20.00 146.99 100.00 25.00 20.00 150.00 32.50 19.80 ● = First choice ○ = Good choice 627
