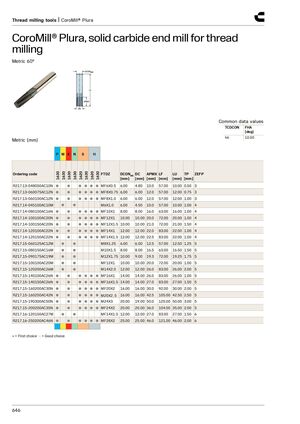

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ Metric 60° Common data values TCDCON FHA [deg] h6 10.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1620 1630 1620 1630 Ordering code FTDZ DCONMS DC APMX LF LU TP ZEFP [mm] [mm] [mm] [mm] [mm] [mm] R217.13-048050AC10N ● ● ● ● ● ● MF6X0.5 6.00 4.80 10.0 57.00 10.00 0.50 3 R217.13-060075AC12N ● ● ● ● ● ● MF8X0.75 6.00 6.00 12.0 57.00 12.00 0.75 3 R217.13-060100AC12N ● ● ● ● ● ● MF8X1.0 6.00 6.00 12.0 57.00 12.00 1.00 3 R217.14-045100AC10M ● ● M6X1.0 6.00 4.50 10.0 57.00 10.00 1.00 4 R217.14-080100AC16N ● ● ● ● ● ● MF10X1 8.00 8.00 16.0 63.00 16.00 1.00 4 R217.14-100100AC20N ● ● ● ● ● ● MF12X1 10.00 10.00 20.0 72.00 20.00 1.00 4 R217.14-100150AC20N ● ● ● ● ● ● MF12X1.5 10.00 10.00 21.0 72.00 21.00 1.50 4 R217.14-120100AC22N ● ● ● ● ● ● MF14X1 12.00 12.00 22.0 83.00 22.00 1.00 4 R217.14-120150AC22N ● ● ● ● ● ● MF14X1.5 12.00 12.00 22.5 83.00 22.00 1.50 4 R217.15-060125AC12M ● ● M8X1.25 6.00 6.00 12.5 57.00 12.50 1.25 5 R217.15-080150AC16M ● ● M10X1.5 8.00 8.00 16.5 63.00 16.50 1.50 5 R217.15-090175AC19M ● ● M12X1.75 10.00 9.00 19.3 72.00 19.25 1.75 5 R217.15-100100AC20M ● ● MF12X1 10.00 10.00 20.0 72.00 20.00 1.00 5 R217.15-120200AC26M ● ● M14X2.0 12.00 12.00 26.0 83.00 26.00 2.00 5 R217.15-140100AC26N ● ● ● ● ● ● MF16X1 14.00 14.00 26.0 83.00 26.00 1.00 5 R217.15-140150AC26N ● ● ● ● ● ● MF16X1.5 14.00 14.00 27.0 83.00 27.00 1.50 5 R217.15-160200AC30N ● ● ● ● ● ● MF20X2 16.00 16.00 30.0 92.00 30.00 2.00 5 R217.15-160250AC42N ● ● ● ● ● ● M20X2,5 16.00 16.00 42.5 105.00 42.50 2.50 5 R217.15-190300AC50N ● ● ● ● ● ● M24X3 20.00 19.00 50.0 125.00 50.00 3.00 5 R217.15-200200AC35N ● ● ● ● ● ● MF24X2 20.00 20.00 36.0 104.00 35.00 2.00 5 R217.16-120150AC27M ● ● MF14X1.5 12.00 12.00 27.0 83.00 27.00 1.50 6 R217.16-250200AC46N ● ● ●●●● MF28X2 25.00 25.00 46.0 121.00 46.00 2.00 6 ● = First choice ○ = Good choice 646
