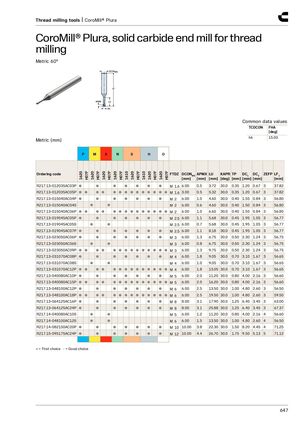

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ Metric 60° Common data values TCDCON FHA [deg] h6 15.00 Metric (mm) P M K N S H O H07F H07F H07F H07F H07F H07F H07F 1620 1620 1620 1620 1610 1620 1610 1620 1620 Ordering code FTDZ DCONMS APMX LU KAPR TP DC 1 DC 2 ZEFP LF 1 _ _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] R217.13-012035AC03P ● ● ● ● ● ● ● M 1.6 6.00 0.5 3.72 30.0 0.35 1.20 0.67 3 37.82 R217.13-012035AC05P ● ● ●● ● ● ● ● ● ● ● ● ● ● M 1.6 3.00 0.5 5.32 30.0 0.35 1.20 0.67 3 37.82 R217.13-015040AC04P ● ● ● ● ● ● ● M 2 6.00 1.0 4.60 30.0 0.40 1.55 0.84 3 56.80 R217.13-015040AC04S ● ● M 2 6.00 0.6 4.60 30.0 0.40 1.50 0.84 3 56.80 R217.13-015040AC06P ●● ●● ● ● ● ● ● ● ● ● ● ● M 2 6.00 1.0 6.60 30.0 0.40 1.55 0.84 3 56.80 R217.13-019045AC05P ● ● ● ● ● ● ● M 2.5 6.00 1.1 5.68 30.0 0.45 1.95 1.05 3 56.77 R217.13-019045AC05S ● ● M 2.5 6.00 0.7 5.68 30.0 0.45 1.95 1.05 3 56.77 R217.13-019045AC07P ● ● ● ● ● ● ● M 2.5 6.00 1.1 8.18 30.0 0.45 1.95 1.05 3 56.77 R217.13-023050AC06P ● ● ● ● ● ● ● M 3 6.00 1.3 6.75 30.0 0.50 2.30 1.24 3 56.75 R217.13-023050AC06S ● ● M 3 6.00 0.8 6.75 30.0 0.50 2.30 1.24 3 56.75 R217.13-023050AC09P ●● ●● ●●●●●●●●●●M3 6.00 1.3 9.75 30.0 0.50 2.30 1.24 3 56.75 R217.13-031070AC08P ● ● ● ● ● ● ● M4 6.00 1.8 9.05 30.0 0.70 3.10 1.67 3 56.65 R217.13-031070AC08S ● ● M 4 6.00 1.0 9.05 30.0 0.70 3.10 1.67 3 56.65 R217.13-031070AC12P ●● ●● ●●●●●●●●●●M4 6.00 1.8 13.05 30.0 0.70 3.10 1.67 3 56.65 R217.13-040080AC10P ● ● ● ● ● ● ● M5 6.00 2.0 11.20 30.0 0.80 4.00 2.16 3 56.60 R217.13-040080AC15P ● ● ●● ●●●●●●●●●●M5 6.00 2.0 16.20 30.0 0.80 4.00 2.16 3 56.60 R217.13-048100AC12P ● ● ● ● ● ● ● M6 6.00 2.5 13.50 30.0 1.00 4.80 2.60 3 56.50 R217.13-048100AC18P ● ● ●● ●●●●●●●●●●M6 6.00 2.5 19.50 30.0 1.00 4.80 2.60 3 59.50 R217.13-064125AC16P ● ● ● ● ● ● ● M8 8.00 3.1 17.90 30.0 1.25 6.40 3.45 3 63.00 R217.13-064125AC24P ● ● ● ● ● ● ● M8 8.00 3.1 25.88 30.0 1.25 6.40 3.45 3 67.37 R217.14-040080AC10S ● ● M 5 6.00 1.2 11.20 30.0 0.80 4.00 2.16 4 56.60 R217.14-048100AC12S ● ● M 6 6.00 1.5 13.50 30.0 1.00 4.80 2.60 4 56.50 R217.14-082150AC20P ● ● ● ● ● ● ● M 10 10.00 3.8 22.30 30.0 1.50 8.20 4.45 4 71.25 R217.15-095175AC24P ● ● ● ● ● ● ● M 12 10.00 4.4 26.70 30.0 1.75 9.50 5.13 5 71.12 ● = First choice ○ = Good choice 647
