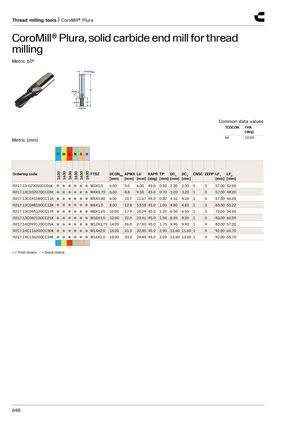

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ Metric 60° Common data values TCDCON FHA [deg] h6 10.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1630 1630 Ordering code FTDZ DCONMS APMX LU KAPR TP DC 1 DC 2 CNSC ZEFP LF 1 _ _ LF 2 _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] R217.13-023050CC06K ● ● ● ● ● ● M3X0.5 6.00 5.0 6.00 45.0 0.50 2.30 2.30 0 3 57.00 52.00 R217.13C032070CC08K ● ● ● ● ● ● M4X0.70 6.00 8.8 9.50 45.0 0.70 3.20 3.20 1 3 57.00 48.20 R217.13C041080CC11K ● ● ● ● ● ● M5X0.80 6.00 10.7 11.67 45.0 0.80 4.10 4.10 1 3 57.00 46.28 R217.13C048100CC13K ● ● ● ● ● ● M6X1.0 8.00 12.8 13.58 45.0 1.00 4.80 4.80 1 3 63.00 50.22 R217.13C065125CC17K ● ● ● ● ● ● M8X1.25 10.00 17.4 18.24 45.0 1.25 6.50 6.50 1 3 72.00 54.65 R217.13C082150CC21K ● ● ● ● ● ● M10X1.5 12.00 22.4 23.41 45.0 1.50 8.20 8.20 1 3 83.00 60.59 R217.14C099175CC26K ● ● ● ● ● ● M12X1.75 14.00 26.0 27.00 45.0 1.75 9.90 9.90 1 4 83.00 57.00 R217.14C116200CC30K ● ● ● ● ● ● M14X2.0 16.00 31.3 32.40 45.0 2.00 11.60 11.60 1 4 92.00 60.70 R217.14C136200CC34K ● ● ● ● ● ● M16X2.0 18.00 33.3 34.40 45.0 2.00 13.60 13.60 1 4 92.00 58.70 ● = First choice ○ = Good choice 648
