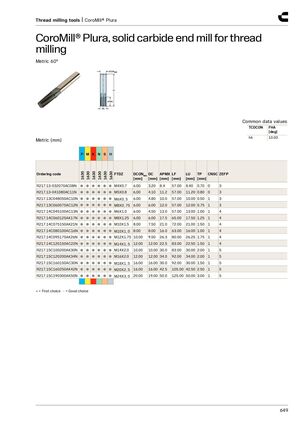

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ Metric 60° Common data values TCDCON FHA [deg] h6 10.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1630 1630 Ordering code FTDZ DCONMS DC APMX LF LU TP CNSC ZEFP [mm] [mm] [mm] [mm] [mm] [mm] R217.13-032070AC08N ● ● ● ● ● ● M4X0.7 6.00 3.20 8.4 57.00 8.40 0.70 0 3 R217.13-041080AC11N ● ● ● ● ● ● M5X0.8 6.00 4.10 11.2 57.00 11.20 0.80 0 3 R217.13C048050AC10N ● ● ● ● ● ● M6X0,5 6.00 4.80 10.0 57.00 10.00 0.50 1 3 R217.13C060075AC12N ● ● ● ● ● ● M8X0,75 6.00 6.00 12.0 57.00 12.00 0.75 1 3 R217.14C045100AC13N ● ● ● ● ● ● M6X1.0 6.00 4.50 13.0 57.00 13.00 1.00 1 4 R217.14C060125AK17N ● ● ● ● ● ● M8X1.25 6.00 6.00 17.5 65.00 17.50 1.25 1 4 R217.14C075150AK21N ● ● ● ● ● ● M10X1.5 8.00 7.50 21.0 72.00 21.00 1.50 1 4 R217.14C080100AC16N ● ● ● ● ● ● M10X1,0 8.00 8.00 16.0 63.00 16.00 1.00 1 4 R217.14C095175AK26N ● ● ● ● ● ● M12X1.75 10.00 9.50 26.3 80.00 26.25 1.75 1 4 R217.14C120150AC22N ● ● ● ● ● ● M14X1,5 12.00 12.00 22.5 83.00 22.50 1.50 1 4 R217.15C100200AK30N ● ● ● ● ● ● M14X2.0 10.00 10.00 30.0 83.00 30.00 2.00 1 5 R217.15C120200AK34N ● ● ● ● ● ● M16X2.0 12.00 12.00 34.0 92.00 34.00 2.00 1 5 R217.15C160150AC30N ● ● ● ● ● ● M18X1,5 16.00 16.00 30.0 92.00 30.00 1.50 1 5 R217.15C160250AK42N ● ● ● ● ● ● M20X2,5 16.00 16.00 42.5 105.00 42.50 2.50 1 5 R217.15C190300AK50N ● ● ● ● ● ● M24X3,0 20.00 19.00 50.0 125.00 50.00 3.00 1 5 ● = First choice ○ = Good choice 649
