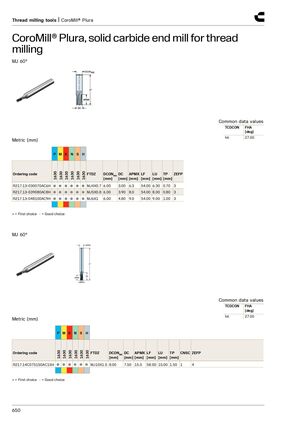

Thread milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for thread milling​​ MJ 60° Common data values TCDCON FHA [deg] h6 27.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1630 1630 Ordering code FTDZ DCONMS DC APMX LF LU TP ZEFP [mm] [mm] [mm] [mm] [mm] [mm] R217.13-030070AC6H ● ● ● ● ● ● MJ4X0.7 6.00 3.00 6.3 54.00 6.30 0.70 3 R217.13-039080AC8H ● ● ● ● ● ● MJ5X0.8 6.00 3.90 8.0 54.00 8.00 0.80 3 R217.13-048100AC9H ● ● ● ● ● ● MJ6X1 6.00 4.80 9.0 54.00 9.00 1.00 3 ● = First choice ○ = Good choice MJ 60° Common data values TCDCON FHA [deg] h6 27.00 Metric (mm) P M K N S H 1630 1630 1630 1630 1630 1630 Ordering code FTDZ DCONMS DC APMX LF LU TP CNSC ZEFP [mm] [mm] [mm] [mm] [mm] [mm] R217.14C075150AC15H ● ● ● ● ● ● MJ10X1.5 8.00 7.50 15.0 58.00 15.00 1.50 1 4 ● = First choice ○ = Good choice 650
