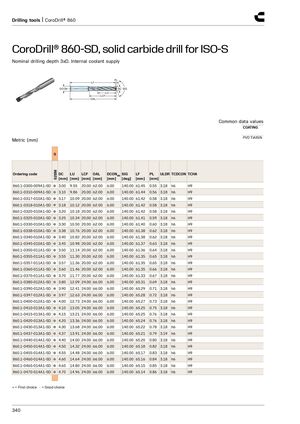

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-009A1-SD ● 3.00 9.55 20.00 62.00 6.00 140.00 61.45 0.55 3.18 h6 H9 860.1-0310-009A1-SD ● 3.10 9.86 20.00 62.00 6.00 140.00 61.44 0.56 3.18 h6 H9 860.1-0317-010A1-SD ● 3.17 10.09 20.00 62.00 6.00 140.00 61.42 0.58 3.18 h6 H9 860.1-0318-010A1-SD ● 3.18 10.12 20.00 62.00 6.00 140.00 61.42 0.58 3.18 h6 H9 860.1-0320-010A1-SD ● 3.20 10.18 20.00 62.00 6.00 140.00 61.42 0.58 3.18 h6 H9 860.1-0325-010A1-SD ● 3.25 10.34 20.00 62.00 6.00 140.00 61.41 0.59 3.18 h6 H9 860.1-0330-010A1-SD ● 3.30 10.50 20.00 62.00 6.00 140.00 61.40 0.60 3.18 h6 H9 860.1-0338-010A1-SD ● 3.38 10.76 20.00 62.00 6.00 140.00 61.38 0.62 3.18 h6 H9 860.1-0340-010A1-SD ● 3.40 10.82 20.00 62.00 6.00 140.00 61.38 0.62 3.18 h6 H9 860.1-0345-010A1-SD ● 3.45 10.98 20.00 62.00 6.00 140.00 61.37 0.63 3.18 h6 H9 860.1-0350-011A1-SD ● 3.50 11.14 20.00 62.00 6.00 140.00 61.36 0.64 3.18 h6 H9 860.1-0355-011A1-SD ● 3.55 11.30 20.00 62.00 6.00 140.00 61.35 0.65 3.18 h6 H9 860.1-0357-011A1-SD ● 3.57 11.36 20.00 62.00 6.00 140.00 61.35 0.65 3.18 h6 H9 860.1-0360-011A1-SD ● 3.60 11.46 20.00 62.00 6.00 140.00 61.35 0.66 3.18 h6 H9 860.1-0370-011A1-SD ● 3.70 11.77 20.00 62.00 6.00 140.00 61.33 0.67 3.18 h6 H9 860.1-0380-012A1-SD ● 3.80 12.09 24.00 66.00 6.00 140.00 65.31 0.69 3.18 h6 H9 860.1-0390-012A1-SD ● 3.90 12.41 24.00 66.00 6.00 140.00 65.29 0.71 3.18 h6 H9 860.1-0397-012A1-SD ● 3.97 12.63 24.00 66.00 6.00 140.00 65.28 0.72 3.18 h6 H9 860.1-0400-012A1-SD ● 4.00 12.73 24.00 66.00 6.00 140.00 65.27 0.73 3.18 h6 H9 860.1-0410-013A1-SD ● 4.10 13.05 24.00 66.00 6.00 140.00 65.25 0.75 3.18 h6 H9 860.1-0415-013A1-SD ● 4.15 13.21 24.00 66.00 6.00 140.00 65.25 0.76 3.18 h6 H9 860.1-0420-013A1-SD ● 4.20 13.36 24.00 66.00 6.00 140.00 65.24 0.76 3.18 h6 H9 860.1-0430-013A1-SD ● 4.30 13.68 24.00 66.00 6.00 140.00 65.22 0.78 3.18 h6 H9 860.1-0437-013A1-SD ● 4.37 13.91 24.00 66.00 6.00 140.00 65.21 0.79 3.19 h6 H9 860.1-0440-014A1-SD ● 4.40 14.00 24.00 66.00 6.00 140.00 65.20 0.80 3.18 h6 H9 860.1-0450-014A1-SD ● 4.50 14.32 24.00 66.00 6.00 140.00 65.18 0.82 3.18 h6 H9 860.1-0455-014A1-SD ● 4.55 14.48 24.00 66.00 6.00 140.00 65.17 0.83 3.18 h6 H9 860.1-0460-014A1-SD ● 4.60 14.64 24.00 66.00 6.00 140.00 65.16 0.84 3.18 h6 H9 860.1-0465-014A1-SD ● 4.65 14.80 24.00 66.00 6.00 140.00 65.15 0.85 3.18 h6 H9 860.1-0470-014A1-SD ● 4.70 14.96 24.00 66.00 6.00 140.00 65.14 0.86 3.18 h6 H9 ● = First choice ○ = Good choice 340
