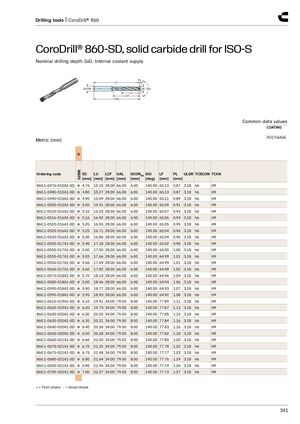

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0476-015A1-SD ● 4.76 15.15 28.00 66.00 6.00 140.00 65.13 0.87 3.18 h6 H9 860.1-0480-015A1-SD ● 4.80 15.27 28.00 66.00 6.00 140.00 65.13 0.87 3.18 h6 H9 860.1-0490-015A1-SD ● 4.90 15.59 28.00 66.00 6.00 140.00 65.11 0.89 3.18 h6 H9 860.1-0500-015A1-SD ● 5.00 15.91 28.00 66.00 6.00 140.00 65.09 0.91 3.18 h6 H9 860.1-0510-016A1-SD ● 5.10 16.23 28.00 66.00 6.00 140.00 65.07 0.93 3.18 h6 H9 860.1-0516-016A1-SD ● 5.16 16.42 28.00 66.00 6.00 140.00 65.06 0.94 3.18 h6 H9 860.1-0520-016A1-SD ● 5.20 16.55 28.00 66.00 6.00 140.00 65.05 0.95 3.18 h6 H9 860.1-0525-016A1-SD ● 5.25 16.71 28.00 66.00 6.00 140.00 65.04 0.96 3.18 h6 H9 860.1-0530-016A1-SD ● 5.30 16.86 28.00 66.00 6.00 140.00 65.04 0.96 3.18 h6 H9 860.1-0540-017A1-SD ● 5.40 17.18 28.00 66.00 6.00 140.00 65.02 0.98 3.18 h6 H9 860.1-0550-017A1-SD ● 5.50 17.50 28.00 66.00 6.00 140.00 65.00 1.00 3.18 h6 H9 860.1-0555-017A1-SD ● 5.55 17.66 28.00 66.00 6.00 140.00 64.99 1.01 3.18 h6 H9 860.1-0556-017A1-SD ● 5.56 17.69 28.00 66.00 6.00 140.00 64.99 1.01 3.18 h6 H9 860.1-0560-017A1-SD ● 5.60 17.82 28.00 66.00 6.00 140.00 64.98 1.02 3.18 h6 H9 860.1-0570-018A1-SD ● 5.70 18.14 28.00 66.00 6.00 140.00 64.96 1.04 3.18 h6 H9 860.1-0580-018A1-SD ● 5.80 18.46 28.00 66.00 6.00 140.00 64.94 1.06 3.18 h6 H9 860.1-0590-018A1-SD ● 5.90 18.77 28.00 66.00 6.00 140.00 64.93 1.07 3.18 h6 H9 860.1-0595-018A1-SD ● 5.95 18.93 28.00 66.00 6.00 140.00 64.92 1.08 3.18 h6 H9 860.1-0610-019A1-SD ● 6.10 19.41 34.00 79.00 8.00 140.00 77.89 1.11 3.18 h6 H9 860.1-0620-019A1-SD ● 6.20 19.73 34.00 79.00 8.00 140.00 77.87 1.13 3.18 h6 H9 860.1-0630-020A1-SD ● 6.30 20.05 34.00 79.00 8.00 140.00 77.85 1.15 3.18 h6 H9 860.1-0635-020A1-SD ● 6.35 20.21 34.00 79.00 8.00 140.00 77.84 1.16 3.18 h6 H9 860.1-0640-020A1-SD ● 6.40 20.36 34.00 79.00 8.00 140.00 77.83 1.16 3.18 h6 H9 860.1-0650-020A1-SD ● 6.50 20.68 34.00 79.00 8.00 140.00 77.82 1.18 3.18 h6 H9 860.1-0660-021A1-SD ● 6.60 21.00 34.00 79.00 8.00 140.00 77.80 1.20 3.18 h6 H9 860.1-0670-021A1-SD ● 6.70 21.32 34.00 79.00 8.00 140.00 77.78 1.22 3.18 h6 H9 860.1-0675-021A1-SD ● 6.75 21.48 34.00 79.00 8.00 140.00 77.77 1.23 3.18 h6 H9 860.1-0680-021A1-SD ● 6.80 21.64 34.00 79.00 8.00 140.00 77.76 1.24 3.18 h6 H9 860.1-0690-021A1-SD ● 6.90 21.96 34.00 79.00 8.00 140.00 77.74 1.26 3.18 h6 H9 860.1-0700-022A1-SD ● 7.00 22.27 34.00 79.00 8.00 140.00 77.73 1.27 3.18 h6 H9 ● = First choice ○ = Good choice 341
