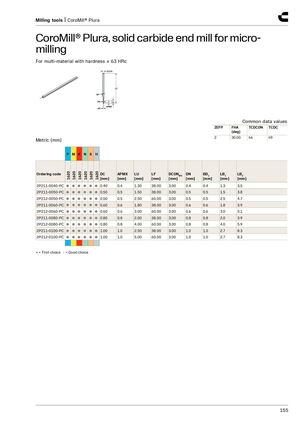

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for micro- milling​​ For multi-material with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) P M K N S H 1620 1620 1620 1620 1620 1620 Ordering code DC APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P211-0040-PC ● ● ● ● ● ● 0.40 0.4 1.30 38.00 3.00 0.4 0.4 1.3 3.5 2P211-0050-PC ● ● ● ● ● ● 0.50 0.5 1.50 38.00 3.00 0.5 0.5 1.5 3.8 2P212-0050-PC ● ● ● ● ● ● 0.50 0.5 2.50 60.00 3.00 0.5 0.5 2.5 4.7 2P211-0060-PC ● ● ● ● ● ● 0.60 0.6 1.80 38.00 3.00 0.6 0.6 1.8 3.9 2P212-0060-PC ● ● ● ● ● ● 0.60 0.6 3.00 60.00 3.00 0.6 0.6 3.0 5.1 2P211-0080-PC ● ● ● ● ● ● 0.80 0.8 2.00 38.00 3.00 0.8 0.8 2.0 3.9 2P212-0080-PC ● ● ● ● ● ● 0.80 0.8 4.00 60.00 3.00 0.8 0.8 4.0 5.9 2P211-0100-PC ● ● ● ● ● ● 1.00 1.0 2.50 38.00 3.00 1.0 1.0 2.7 8.3 2P212-0100-PC ● ● ● ● ● ● 1.00 1.0 5.00 60.00 3.00 1.0 1.0 2.7 8.3 ● = First choice ○ = Good choice 155
