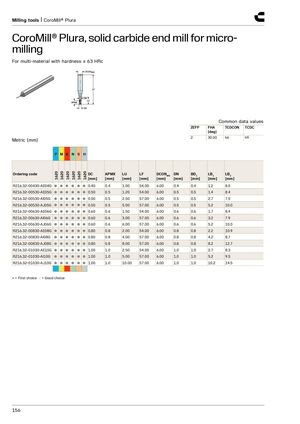

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for micro- milling​​ For multi-material with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) P M K N S H 1620 1620 1620 1620 1620 1620 Ordering code DC APMX LU LF DCONMS DN BD 1_ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.32-00430-AE04G ● ● ● ● ● ● 0.40 0.4 1.00 54.00 6.00 0.4 0.4 1.2 8.5 R216.32-00530-AE05G ● ● ● ● ● ● 0.50 0.5 1.20 54.00 6.00 0.5 0.5 1.4 8.4 R216.32-00530-AI05G ● ● ● ● ● ● 0.50 0.5 2.50 57.00 6.00 0.5 0.5 2.7 7.5 R216.32-00530-AJ05G ● ● ● ● ● ● 0.50 0.5 5.00 57.00 6.00 0.5 0.5 5.2 10.0 R216.32-00630-AE06G ● ● ● ● ● ● 0.60 0.6 1.50 54.00 6.00 0.6 0.6 1.7 8.4 R216.32-00630-AI06G ● ● ● ● ● ● 0.60 0.6 3.00 57.00 6.00 0.6 0.6 3.2 7.9 R216.32-00630-AJ06G ● ● ● ● ● ● 0.60 0.6 6.00 57.00 6.00 0.6 0.6 5.2 10.0 R216.32-00830-AE08G ● ● ● ● ● ● 0.80 0.8 2.00 54.00 6.00 0.8 0.8 2.2 10.9 R216.32-00830-AI08G ● ● ● ● ● ● 0.80 0.8 4.00 57.00 6.00 0.8 0.8 4.2 8.7 R216.32-00830-AJ08G ● ● ● ● ● ● 0.80 0.8 8.00 57.00 6.00 0.8 0.8 8.2 12.7 R216.32-01030-AE10G ● ● ● ● ● ● 1.00 1.0 2.50 54.00 6.00 1.0 1.0 2.7 8.3 R216.32-01030-AI10G ● ● ● ● ● ● 1.00 1.0 5.00 57.00 6.00 1.0 1.0 5.2 9.5 R216.32-01030-AJ10G ● ● ● ● ● ● 1.00 1.0 10.00 57.00 6.00 1.0 1.0 10.2 14.5 ● = First choice ○ = Good choice 156
