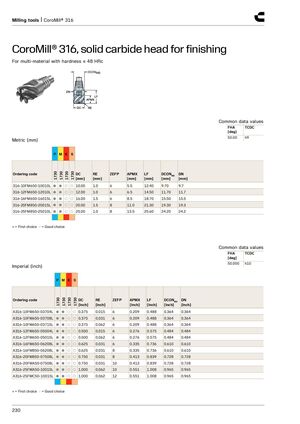

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for finishing​​ For multi-material with hardness ≤ 48 HRc Common data values FHA TCDC [deg] 50.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10FM650-10010L ● ● ○ ○ 10.00 1.0 6 5.5 12.40 9.70 9.7 316-12FM650-12010L ● ● ○ ○ 12.00 1.0 6 6.5 14.50 11.70 11.7 316-16FM650-16015L ● ● ○ ○ 16.00 1.5 6 8.5 18.70 15.50 15.5 316-20FM850-20015L ● ● ○ ○ 20.00 1.5 8 11.0 21.30 19.30 19.3 316-25FM850-25010L ● ● ○ ○ 25.00 1.0 8 13.5 25.60 24.20 24.2 ● = First choice ○ = Good choice Common data values FHA TCDC [deg] 50.000 h10 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10FM650-03704L ● ● ○ ○ 0.375 0.015 6 0.209 0.488 0.364 0.364 A316-10FM650-03708L ● ● ○ ○ 0.375 0.031 6 0.209 0.488 0.364 0.364 A316-10FM650-03715L ● ● ○ ○ 0.375 0.062 6 0.209 0.488 0.364 0.364 A316-12FM650-05004L ● ● ○ ○ 0.500 0.015 6 0.276 0.575 0.484 0.484 A316-12FM650-05015L ● ● ○ ○ 0.500 0.062 6 0.276 0.575 0.484 0.484 A316-16FM650-06208L ● ● ○ ○ 0.625 0.031 6 0.335 0.736 0.610 0.610 A316-16FM850-06208L ● ● ○ ○ 0.625 0.031 8 0.335 0.736 0.610 0.610 A316-20FM850-07508L ● ● ○ ○ 0.750 0.031 8 0.413 0.839 0.728 0.728 A316-20FMA50-07508L ● ● ○ ○ 0.750 0.031 10 0.413 0.839 0.728 0.728 A316-25FMA50-10015L ● ● ○ ○ 1.000 0.062 10 0.551 1.008 0.965 0.965 A316-25FMC50-10015L ● ● ○ ○ 1.000 0.062 12 0.551 1.008 0.965 0.965 ● = First choice ○ = Good choice 230
