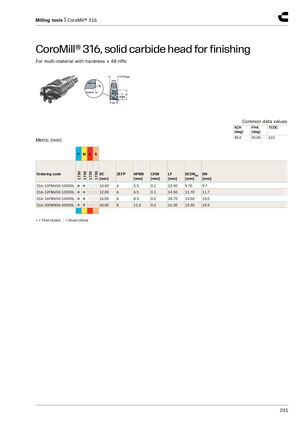

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for finishing​​ For multi-material with hardness ≤ 48 HRc Common data values KCH FHA TCDC [deg] [deg] 45.0 50.00 h10 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC ZEFP APMX CHW LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10FM650-10000L ● ● ○ ○ 10.00 6 5.5 0.1 12.40 9.70 9.7 316-12FM650-12000L ● ● ○ ○ 12.00 6 6.5 0.1 14.50 11.70 11.7 316-16FM650-16000L ● ● ○ ○ 16.00 6 8.5 0.2 18.70 15.50 15.5 316-20FM850-20000L ● ● ○ ○ 20.00 8 11.0 0.2 21.30 19.30 19.3 ● = First choice ○ = Good choice 231
