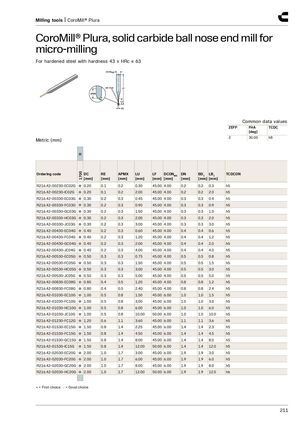

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for micro-milling For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values ZEFP FHA TCDC [deg] 2 30.00 h8 Metric (mm) H 1700 Ordering code DC RE APMX LU LF DCONMS DN BD 1 LB 1 _ _ TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-00230-EC02G ● 0.20 0.1 0.2 0.30 45.00 4.00 0.2 0.2 0.3 h5 R216.42-00230-IC02G ● 0.20 0.1 0.2 2.00 45.00 4.00 0.2 0.2 2.0 h5 R216.42-00330-EC03G ● 0.30 0.2 0.3 0.45 45.00 4.00 0.3 0.3 0.4 h5 R216.42-00330-FC03G ● 0.30 0.2 0.3 0.90 45.00 4.00 0.3 0.3 0.9 h5 R216.42-00330-GC03G ● 0.30 0.2 0.3 1.50 45.00 4.00 0.3 0.3 1.5 h5 R216.42-00330-HC03G ● 0.30 0.2 0.3 2.00 45.00 4.00 0.3 0.3 2.0 h5 R216.42-00330-JC03G ● 0.30 0.2 0.3 3.00 45.00 4.00 0.3 0.3 3.0 h5 R216.42-00430-EC04G ● 0.40 0.2 0.3 0.60 45.00 4.00 0.4 0.4 0.6 h5 R216.42-00430-FC04G ● 0.40 0.2 0.3 1.20 45.00 4.00 0.4 0.4 1.2 h5 R216.42-00430-GC04G ● 0.40 0.2 0.3 2.00 45.00 4.00 0.4 0.4 2.0 h5 R216.42-00430-JC04G ● 0.40 0.2 0.3 4.00 45.00 4.00 0.4 0.4 4.0 h5 R216.42-00530-EC05G ● 0.50 0.3 0.3 0.75 45.00 4.00 0.5 0.5 0.8 h5 R216.42-00530-FC05G ● 0.50 0.3 0.3 1.50 45.00 4.00 0.5 0.5 1.5 h5 R216.42-00530-HC05G ● 0.50 0.3 0.3 3.00 45.00 4.00 0.5 0.5 3.0 h5 R216.42-00530-JC05G ● 0.50 0.3 0.3 5.00 45.00 4.00 0.5 0.5 5.0 h5 R216.42-00830-EC08G ● 0.80 0.4 0.5 1.20 45.00 4.00 0.8 0.8 1.2 h5 R216.42-00830-FC08G ● 0.80 0.4 0.5 2.40 45.00 4.00 0.8 0.8 2.4 h5 R216.42-01030-EC10G ● 1.00 0.5 0.8 1.50 45.00 6.00 1.0 1.0 1.5 h5 R216.42-01030-FC10G ● 1.00 0.5 0.8 3.00 45.00 6.00 1.0 1.0 3.0 h5 R216.42-01030-HC10G ● 1.00 0.5 0.8 6.00 45.00 6.00 1.0 1.0 6.0 h5 R216.42-01030-JC10G ● 1.00 0.5 0.8 10.00 50.00 6.00 1.0 1.0 10.0 h5 R216.42-01230-FC12G ● 1.20 0.6 1.1 3.60 45.00 6.00 1.1 1.1 3.6 h5 R216.42-01530-EC15G ● 1.50 0.8 1.4 2.25 45.00 6.00 1.4 1.4 2.3 h5 R216.42-01530-FC15G ● 1.50 0.8 1.4 4.50 45.00 6.00 1.4 1.4 4.5 h5 R216.42-01530-GC15G ● 1.50 0.8 1.4 8.00 45.00 6.00 1.4 1.4 8.0 h5 R216.42-01530-IC15G ● 1.50 0.8 1.4 12.00 50.00 6.00 1.4 1.4 12.0 h5 R216.42-02030-EC20G ● 2.00 1.0 1.7 3.00 45.00 6.00 1.9 1.9 3.0 h5 R216.42-02030-FC20G ● 2.00 1.0 1.7 6.00 45.00 6.00 1.9 1.9 6.0 h5 R216.42-02030-GC20G ● 2.00 1.0 1.7 8.00 45.00 6.00 1.9 1.9 8.0 h5 R216.42-02030-HC20G ● 2.00 1.0 1.7 12.00 50.00 6.00 1.9 1.9 12.0 h6 ● = First choice ○ = Good choice 211
