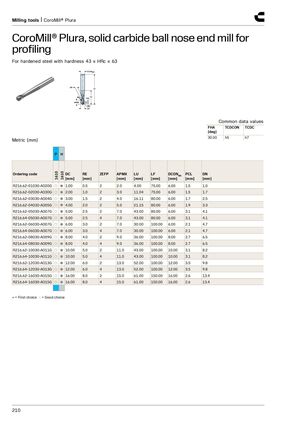

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA TCDCON TCDC [deg] 30.00 h5 h7 Metric (mm) P H 1610 1610 Ordering code DC RE ZEFP APMX LU LF DCONMS PCL DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.62-01030-AO20G ○ ● 1.00 0.5 2 2.0 4.00 75.00 6.00 1.5 1.0 R216.62-02030-AO30G ○ ● 2.00 1.0 2 3.0 11.04 75.00 6.00 1.5 1.7 R216.62-03030-AO04G ○ ● 3.00 1.5 2 4.0 16.11 80.00 6.00 1.7 2.5 R216.62-04030-AO05G ○ ● 4.00 2.0 2 5.0 21.15 80.00 6.00 1.9 3.3 R216.62-05030-AO07G ○ ● 5.00 2.5 2 7.0 43.00 80.00 6.00 3.1 4.1 R216.64-05030-AO07G ○ ● 5.00 2.5 4 7.0 43.00 80.00 6.00 3.1 4.1 R216.62-06030-AO07G ○ ● 6.00 3.0 2 7.0 30.00 100.00 6.00 2.1 4.7 R216.64-06030-AO07G ○ ● 6.00 3.0 4 7.0 30.00 100.00 6.00 2.1 4.7 R216.62-08030-AO09G ○ ● 8.00 4.0 2 9.0 36.00 100.00 8.00 2.7 6.5 R216.64-08030-AO09G ○ ● 8.00 4.0 4 9.0 36.00 100.00 8.00 2.7 6.5 R216.62-10030-AO11G ○ ● 10.00 5.0 2 11.0 43.00 100.00 10.00 3.1 8.2 R216.64-10030-AO11G ○ ● 10.00 5.0 4 11.0 43.00 100.00 10.00 3.1 8.2 R216.62-12030-AO13G ○ ● 12.00 6.0 2 13.0 52.00 100.00 12.00 3.5 9.8 R216.64-12030-AO13G ○ ● 12.00 6.0 4 13.0 52.00 100.00 12.00 3.5 9.8 R216.62-16030-AO15G ○ ● 16.00 8.0 2 15.0 61.00 150.00 16.00 2.6 13.4 R216.64-16030-AO15G ○ ● 16.00 8.0 4 15.0 61.00 150.00 16.00 2.6 13.4 ● = First choice ○ = Good choice 210
