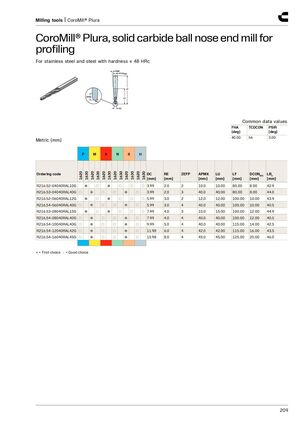

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values FHA TCDCON PSIR [deg] [deg] 40.00 h6 3.00 Metric (mm) P M K N S H 1620 1630 1620 1630 1620 1630 1620 1630 1620 1630 1620 1630 Ordering code DC RE ZEFP APMX LU LF DCONMS LB 1 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.52-04040RAL10G ● ○ ● ○ ○ ○ 3.99 2.0 2 10.0 10.00 80.00 8.00 42.9 R216.53-04040RAL40G ○ ● ○ ○ ● ○ 3.99 2.0 3 40.0 40.00 80.00 8.00 44.0 R216.52-06040RAL12G ● ○ ● ○ ○ ○ 5.99 3.0 2 12.0 12.00 100.00 10.00 43.9 R216.54-06040RAL40G ○ ● ○ ○ ● ○ 5.99 3.0 4 40.0 40.00 100.00 10.00 40.5 R216.53-08040RAL15G ● ○ ● ○ ○ ○ 7.99 4.0 3 15.0 15.00 100.00 12.00 44.9 R216.54-08040RAL40G ○ ● ○ ○ ● ○ 7.99 4.0 4 40.0 40.00 100.00 12.00 40.5 R216.54-10040RAL40G ○ ● ○ ○ ● ○ 9.99 5.0 4 40.0 40.00 115.00 14.00 42.5 R216.54-12040RAL42G ○ ● ○ ○ ● ○ 11.98 6.0 4 42.0 42.00 115.00 16.00 43.5 R216.54-16040RAL45G ○ ● ○ ○ ● ○ 15.98 8.0 4 45.0 45.00 125.00 20.00 46.0 ● = First choice ○ = Good choice 209
