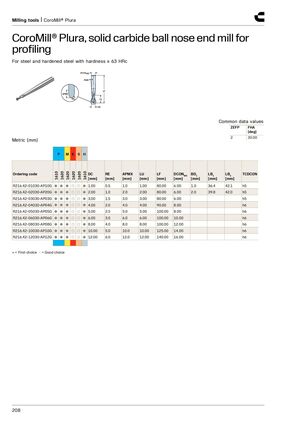

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values ZEFP FHA [deg] 2 30.00 Metric (mm) P M K S H 1610 1620 1620 1620 1620 1610 Ordering code DC RE APMX LU LF DCONMS BD 1 _ LB 1 _ LB 2 _ TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-01030-AP10G ● ● ● ○ ○ ● 1.00 0.5 1.0 1.00 80.00 6.00 1.0 36.4 42.1 h5 R216.42-02030-AP20G ● ● ● ○ ○ ● 2.00 1.0 2.0 2.00 80.00 6.00 2.0 39.8 42.0 h5 R216.42-03030-AP03G ● ● ● ○ ○ ● 3.00 1.5 3.0 3.00 80.00 6.00 h5 R216.42-04030-AP04G ● ● ● ○ ○ ● 4.00 2.0 4.0 4.00 90.00 8.00 h6 R216.42-05030-AP05G ● ● ● ○ ○ ● 5.00 2.5 5.0 5.00 100.00 8.00 h6 R216.42-06030-AP06G ● ● ● ○ ○ ● 6.00 3.0 6.0 6.00 100.00 10.00 h6 R216.42-08030-AP08G ● ● ● ○ ○ ● 8.00 4.0 8.0 8.00 100.00 12.00 h6 R216.42-10030-AP10G ● ● ● ○ ○ ● 10.00 5.0 10.0 10.00 125.00 14.00 h6 R216.42-12030-AP12G ● ● ● ○ ○ ● 12.00 6.0 12.0 12.00 140.00 16.00 h6 ● = First choice ○ = Good choice 208
