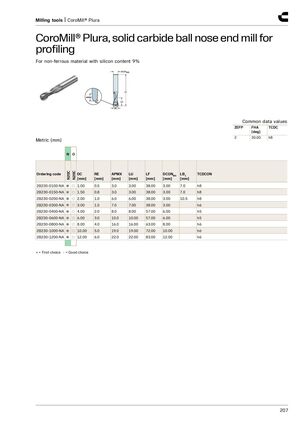

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For non-ferrous material with silicon content 9% Common data values ZEFP FHA TCDC [deg] 2 30.00 h8 Metric (mm) N O N20C N20C Ordering code DC RE APMX LU LF DCONMS LB 1 _ TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2B230-0100-NA ● ○ 1.00 0.5 3.0 3.00 38.00 3.00 7.0 h8 2B230-0150-NA ● ○ 1.50 0.8 3.0 3.00 38.00 3.00 7.0 h8 2B230-0200-NA ● ○ 2.00 1.0 6.0 6.00 38.00 3.00 10.5 h8 2B230-0300-NA ● ○ 3.00 1.5 7.0 7.00 38.00 3.00 h6 2B230-0400-NA ● ○ 4.00 2.0 8.0 8.00 57.00 6.00 h5 2B230-0600-NA ● ○ 6.00 3.0 10.0 10.00 57.00 6.00 h5 2B230-0800-NA ● ○ 8.00 4.0 16.0 16.00 63.00 8.00 h6 2B230-1000-NA ● ○ 10.00 5.0 19.0 19.00 72.00 10.00 h6 2B230-1200-NA ● ○ 12.00 6.0 22.0 22.00 83.00 12.00 h6 ● = First choice ○ = Good choice 207
