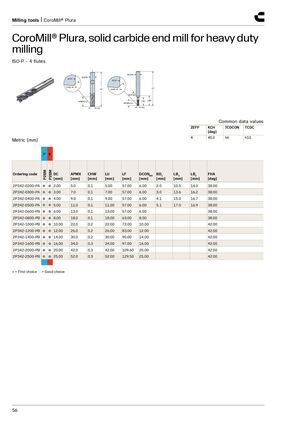

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 4 flutes DCON DCON KCH KCH CHW LF LF CHW BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP KCH TCDCON TCDC [deg] 4 45.0 h6 h10 Metric (mm) P K P2BM P2BM Ordering code DC APMX CHW LU LF DCONMS BD 1 _ LB 1 _ LB 2_ FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 2P342-0200-PA ● ● 2.00 5.0 0.1 5.00 57.00 6.00 2.0 10.5 14.0 38.00 2P342-0300-PA ● ● 3.00 7.0 0.1 7.00 57.00 6.00 3.0 13.6 16.2 38.00 2P342-0400-PA ● ● 4.00 9.0 0.1 9.00 57.00 6.00 4.1 15.0 16.7 38.00 2P342-0500-PA ● ● 5.00 11.0 0.1 11.00 57.00 6.00 5.1 17.0 16.9 38.00 2P342-0600-PB ● ● 6.00 13.0 0.1 13.00 57.00 6.00 38.00 2P342-0800-PB ● ● 8.00 18.0 0.1 18.00 63.00 8.00 38.00 2P342-1000-PB ● ● 10.00 22.0 0.2 22.00 72.00 10.00 42.00 2P342-1200-PB ● ● 12.00 26.0 0.2 26.00 83.00 12.00 42.00 2P342-1400-PB ● ● 14.00 30.0 0.2 30.00 90.00 14.00 42.00 2P342-1600-PB ● ● 16.00 34.0 0.3 34.00 97.00 16.00 42.00 2P342-2000-PB ● ● 20.00 42.0 0.3 42.00 109.60 20.00 42.00 2P342-2500-PB ● ● 25.00 52.0 0.3 52.00 129.50 25.00 42.00 ● = First choice ○ = Good choice 56
