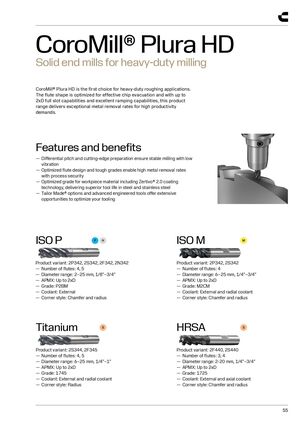

CoroMill® Plura HD Solid end mills for heavy-duty milling CoroMill® Plura HD is the first choice for heavy-duty roughing applications. The flute shape is optimized for effective chip evacuation and with up to 2xD full slot capabilities and excellent ramping capabilities, this product range delivers exceptional metal removal rates for high productivity demands. Features and benefits — Differential pitch and cutting-edge preparation ensure stable milling with low vibration — Optimized flute design and tough grades enable high metal removal rates with process security — Optimized grade for workpiece material including Zertivo® 2.0 coating technology, delivering superior tool life in steel and stainless steel — Tailor Made® options and advanced engineered tools offer extensive opportunities to optimize your tooling ISO P ISO M Product variant: 2P342, 2S342, 2F342, 2N342 Product variant: 2P342, 2S342 — Number of flutes: 4, 5 — Number of flutes: 4 — Diameter range: 2–25 mm, 1/8”–3/4” — Diameter range: 6–25 mm, 1/4”–3/4” — APMX: Up to 2xD — APMX: Up to 2xD — Grade: P2BM — Grade: M2CM — Coolant: External — Coolant: External and radial coolant — Corner style: Chamfer and radius — Corner style: Chamfer and radius Titanium HRSA Product variant: 2S344, 2F345 Product variant: 2F440, 2S440 — Number of flutes: 4, 5 — Number of flutes: 3, 4 — Diameter range: 6–25 mm, 1/4”–1” — Diameter range: 2-20 mm, 1/4”–3/4” — APMX: Up to 2xD — APMX: Up to 2xD — Grade: 1745 — Grade: 1725 — Coolant: External and radial coolant — Coolant: External and axial coolant — Corner style: Radius — Corner style: Chamfer and radius 55
