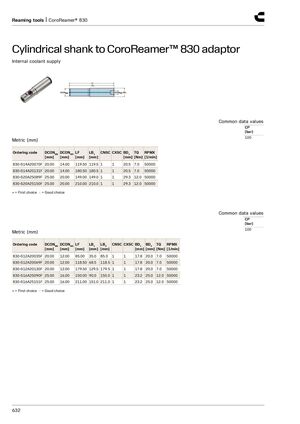

Reaming tools | CoroReamer® 830 Cylindrical shank to CoroReamer™ 830 adaptor​​ Internal coolant supply Common data values CP [bar] 100 Metric (mm) Ordering code DCONMS DCONWS LF LB 1 _ CNSC CXSC BD 1 TQ_ RPMX [mm] [mm] [mm] [mm] [mm] [Nm] [1/min] 830-S14A20070F 20.00 14.00 119.50 119.5 1 1 20.5 7.0 50000 830-S14A20131F 20.00 14.00 180.50 180.5 1 1 20.5 7.0 50000 830-S20A25089F 25.00 20.00 149.00 149.0 1 1 29.3 12.0 50000 830-S20A25150F 25.00 20.00 210.00 210.0 1 1 29.3 12.0 50000 ● = First choice ○ = Good choice Common data values CP [bar] 100 Metric (mm) Ordering code DCONMS DCONWS LF LB 1 _ LB 2_CNSC CXSC BD 1 BD 2 TQ _ RPMX _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [Nm] [1/min] 830-S12A20035F 20.00 12.00 85.00 35.0 85.0 1 1 17.8 20.0 7.0 50000 830-S12A20069F 20.00 12.00 118.50 68.5 118.5 1 1 17.8 20.0 7.0 50000 830-S12A20130F 20.00 12.00 179.50 129.5 179.5 1 1 17.8 20.0 7.0 50000 830-S16A25090F 25.00 16.00 150.00 90.0 150.0 1 1 23.2 25.0 12.0 50000 830-S16A25151F 25.00 16.00 211.00 151.0 211.0 1 1 23.2 25.0 12.0 50000 ● = First choice ○ = Good choice 632
